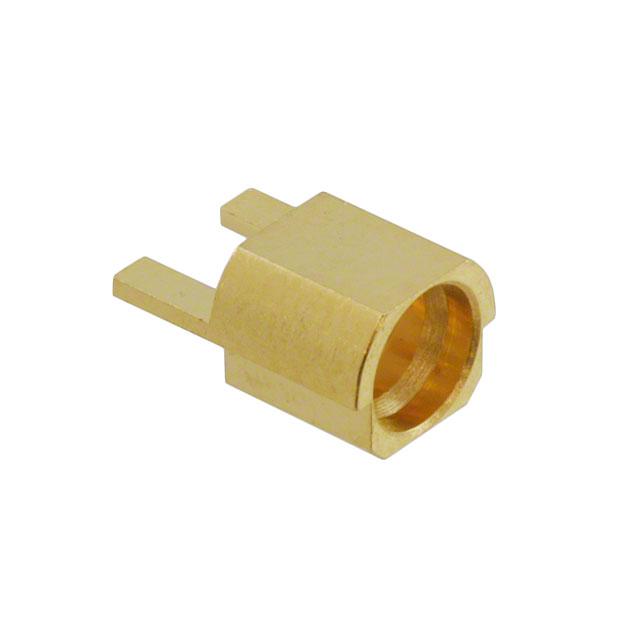

Winchester Interconnect 2062EL10104

2062EL10104 Winchester Interconnect
Winchester Interconnect

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-
Connector Style:
SMP
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
16 Weeks
title:
2062EL10104
Shield Termination:
Solder
Includes:
-
Frequency - Max:
40 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
-
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
-
Ingress Protection:
-
Features:
Limited Detent
Mounting Type:
Board Edge, Cutout; Surface Mount
Series:
-
Center Contact Plating:
Gold
Packaging:
Tray
Contact Termination:
Solder
Base Product Number:
2062EL1
ECCN:
EAR99
Checking for live stock

This is manufactured by Winchester Interconnect. The manufacturer part number is 2062EL10104. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The beryllium copper material is utilised for designing its center contacts. It comes in smp connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 16 weeks standard lead time. It has a solder shield termination. It maximum frequency is 40 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. The splendid features of the product include limited detent. The product is available in board edge, cutout; surface mount configuration. The center contact is plated with a [Center Contract Plating]. In addition, tray is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to 2062el1, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
SMP Connectors(Datasheets)
pdf icon
2062EL10104 Drawing(Product Drawings)
