Rosenberger 59K214-303L5

59K214-303L5 Rosenberger
59K214-303L5
Rosenberger

Product Information

Body Plating:
Gold
Mating Type:
Snap-On
Mounting Type:
Cable Mount, Flange Mount
Gender:
Female
Body Orientation:
Right Angle
Cable Type:
RG316
Termination Method:
Crimp, Solder
Bulkhead:
Yes
Contact Plating:
Gold
Contact Material:
Brass
Operating Frequency:
DC to 4GHz
Impedance:
50Ω
Series Number:
59
Size:
Subminiature
Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-55°C ~ 155°C
Connector Style:
SMB
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Voltage Rating:
250 V
REACH Status:
REACH Affected
Includes:

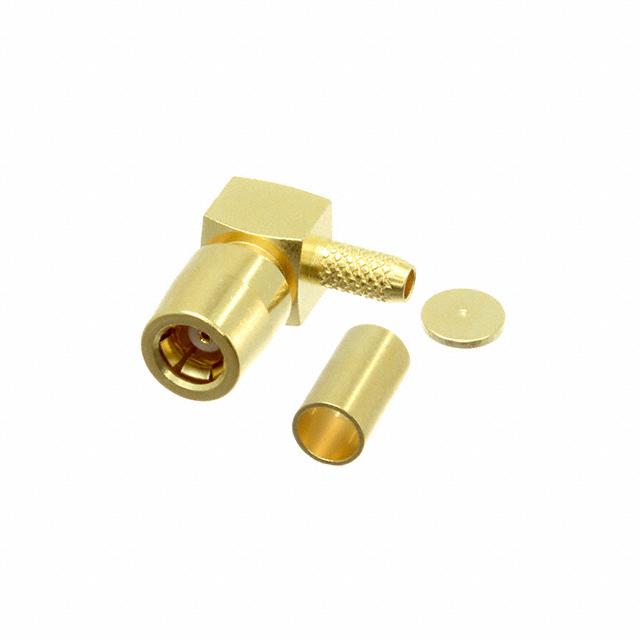

3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Frequency - Max:
4 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
RG-316
Package:
Bulk
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line), Right Angle
Series:
-
Contact Termination:
Solder
Base Product Number:
59K214
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Rosenberger. The manufacturer part number is 59K214-303L5. The body is gold plated for adorable look and strength. It is a type of snap-on mating. The product is available in cable mount, flange mount configuration. In addition, female is the available "Gender" of the product. It has right angle body orientation. It is a typical rg316 cable. It allows crimp, solder termination method. It has a bulkhead yes . The high-quality gold is used as contact plating material. The product is made from sturdy brass materials. Furthermore, the product has dc to 4ghz operating frequency range. It has an impedance value of 50ω. It carries [Serial Number] serial number. The product is available in subminiature size. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The beryllium copper material is utilised for designing its center contacts. The product has -55°c ~ 155°c operating temperature range. It comes in smb connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 250 v voltage rating. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 end cap, 1 ferrule. It maximum frequency is 4 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-316. It is shipped in bulk package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line), right angle configuration. It also incorporates solder contact terminals. Moreover, it corresponds to 59k214, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
SMB 50 Ohm Right Angle Jack drawing(Technical Reference)
pdf icon
59K214-303L5 Datasheet(Datasheets)
