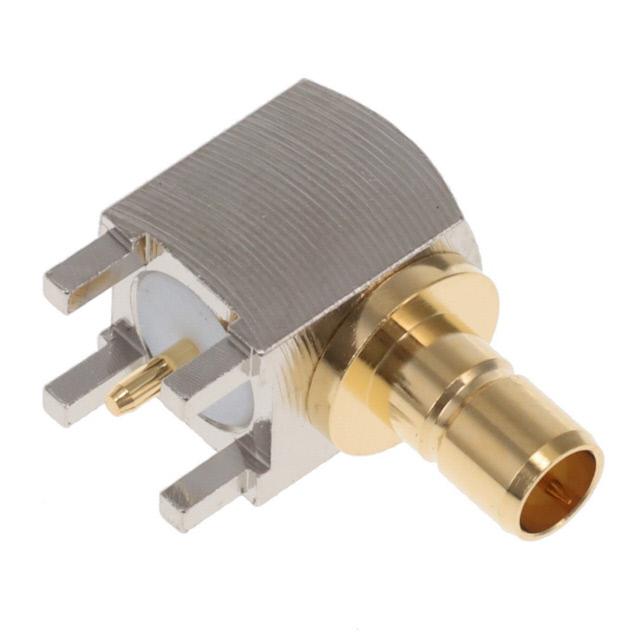

Samtec Inc. SMB7H-J-P-HN-RA-TH1

SMB7H-J-P-HN-RA-TH1 Samtec Inc.
Samtec Inc.

Product Information

Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMB
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
6 Weeks
Voltage Rating:
335 V
REACH Status:
REACH Affected
Includes:
-
Frequency - Max:
4 GHz
Housing Color:
Silver
Impedance:
75 Ohms
Cable Group:
-
Package:
Bulk
Connector Type:
Jack, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
SMB
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
SMB7H-J
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is SMB7H-J-P-HN-RA-TH1. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in smb connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 6 weeks standard lead time. Moreover, the product has a nominal 335 v voltage rating. In addition, it is reach affected. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 75 ohms. It is shipped in bulk package . jack, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. The product is available in through hole, right angle configuration. The product smb, is a highly preferred choice for users. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to smb7h-j, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
SMB7H Datasheet(Datasheets)
pdf icon
SMB7H-J-P-x-RA-TH1 Drawing(Product Drawings)
