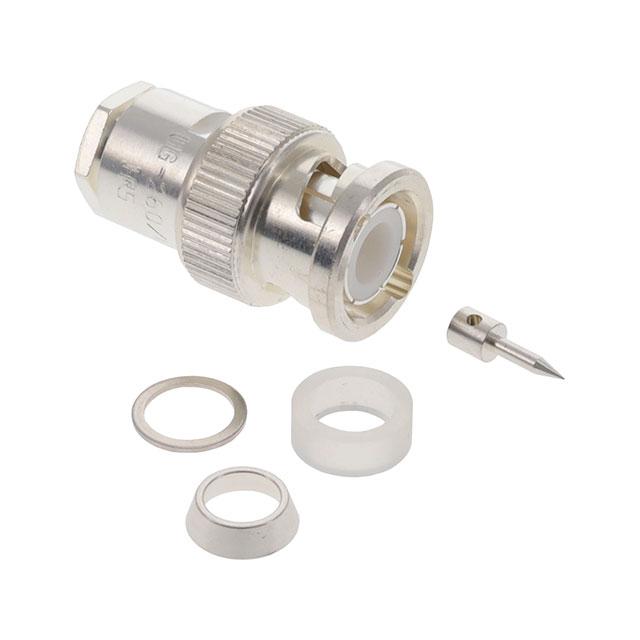

Hirose Electric Co Ltd UG-260/U(40)

UG-260-U-40- Hirose Electric Co Ltd UG-260/U(40)
Hirose Electric Co Ltd

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-30°C ~ 60°C
Connector Style:
BNC
Body Finish:
Silver
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Silver
title:
UG-260/U(40)
Shield Termination:
Clamp
Includes:
-
Frequency - Max:
4 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-59, 62
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
5000
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Packaging:
Bulk
Contact Termination:
Solder
Base Product Number:
UG-260/U
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is UG-260/U(40). It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The brass material is utilised for designing its center contacts. The product has -30°c ~ 60°c operating temperature range. It comes in bnc connector style. The body is galvanized with nice finishing of silver. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. It has a clamp shield termination. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-59, 62. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 5000. The product is available in free hanging (in-line) configuration. In addition, bulk is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to ug-260/u, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
End of Life Updated PCN 18/AUG/2023(PCN Obsolescence/ EOL)
pdf icon
End of Life 05/JUL/2022(PCN Obsolescence/ EOL)
pdf icon
End of Life 03/MAR/2023(PCN Obsolescence/ EOL)
pdf icon
BNC Series(Datasheets)
