TE Connectivity AMP Connectors 5225396-7

5225396-7 TE Connectivity AMP Connectors
5225396-7
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-55°C ~ 85°C
Connector Style:
BNC
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.2dB
standardLeadTime:
10 Weeks
title:
5225396-7
Shield Termination:
Crimp
REACH Status:
REACH Affected
Includes:

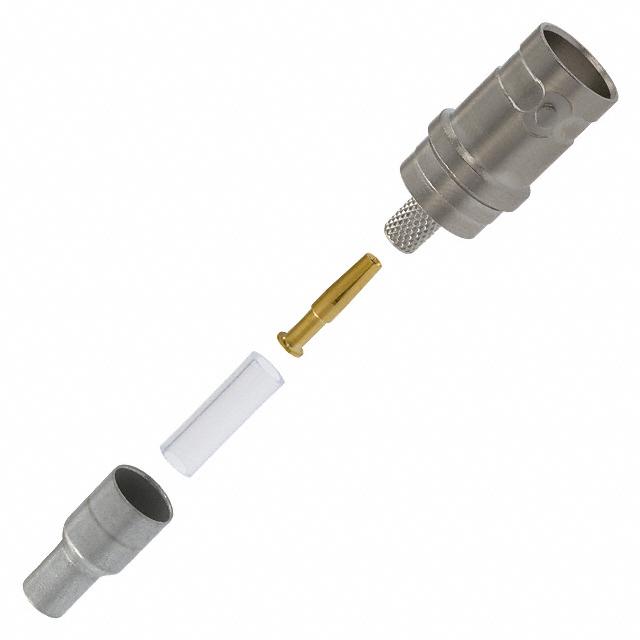

4 pcs - 1 Connector, 1 Bushing, 1 Contact, 1 Ferrule
edacadModel:
5225396-7 Models
Frequency - Max:
4 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/811120
Impedance:
50 Ohms
Cable Group:
RG-174, 188
Voltage Rating:
500 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
5225396
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5225396-7. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The beryllium copper material is utilised for designing its center contacts. The product has -55°c ~ 85°c operating temperature range. It comes in bnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.2db of insertion loss. It has a long 10 weeks standard lead time. It has a crimp shield termination. In addition, it is reach affected. The product is also supplied with 4 pcs - 1 connector, 1 bushing, 1 contact, 1 ferrule. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-174, 188. Moreover, the product has a nominal 500 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to 5225396, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Obsolete 24/MAR/2022(PCN Obsolescence/ EOL)
pdf icon
End of Life 16/DEC/2021(PCN Obsolescence/ EOL)
