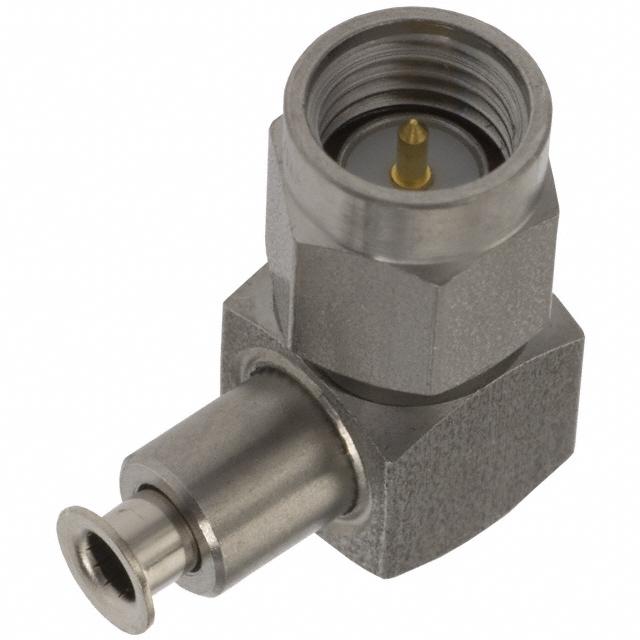

TE Connectivity Aerospace, Defense and Marine 228583-1

228583-1 TE Connectivity Aerospace, Defense and Marine
TE Connectivity Aerospace, Defense and Marine

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 105°C
Connector Style:
SMA
Body Finish:
-
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.35dB
Center Contact Plating:
Gold
Shield Termination:
Crimp
REACH Status:
Vendor Undefined
Includes:
-
edacadModel:
228583-1 Models
Frequency - Max:
18 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/292553
Impedance:
50 Ohms
Cable Group:
RG-405 (.086 Semi Rigid)
Voltage Rating:
335 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Body Material:
Stainless Steel
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line), Right Angle
Series:
-
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
228583
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Aerospace, Defense and Marine. The manufacturer part number is 228583-1. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 105°c operating temperature range. It comes in sma connector style. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.35db of insertion loss. The center contact is plated with a [Center Contract Plating]. It has a crimp shield termination. In addition, it is vendor undefined. It maximum frequency is 18 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-405 (.086 semi rigid). Moreover, the product has a nominal 335 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 1 number of ports. The product's body is nicely designed from stainless steel materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line), right angle configuration. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to 228583, a base product number of the product. The product is designated with the ear99 code number.
