TE Connectivity AMP Connectors 5414170-1

5414170-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
-
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMB
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.3dB
Center Contact Plating:
Gold
Shield Termination:
Crimp
REACH Status:
REACH Affected
Includes:

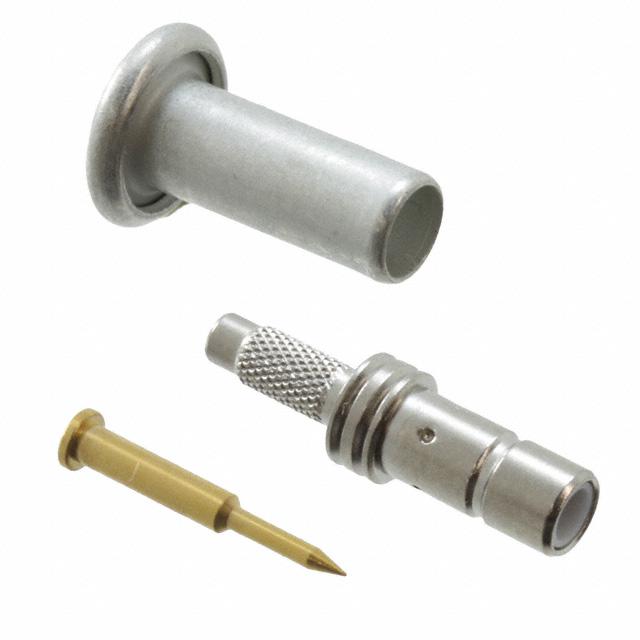

3 pcs - 1 Connector, 1 Contact, 1 Ferrule
edacadModel:
5414170-1 Models
Frequency - Max:
4 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/1971155
Impedance:
50 Ohms
Cable Group:
RG-174, 188, 316
Voltage Rating:
335 V
Connector Type:
Jack, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
-
Fastening Type:
Snap-On
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
5414170
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5414170-1. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The product has -65°c ~ 165°c operating temperature range. It comes in smb connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.3db of insertion loss. The center contact is plated with a [Center Contract Plating]. It has a crimp shield termination. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-174, 188, 316. Moreover, the product has a nominal 335 v voltage rating. jack, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to 5414170, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
End of Life 16/DEC/2021(PCN Obsolescence/ EOL)
