TE Connectivity AMP Connectors 1274563-1

1274563-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-40°C ~ 85°C
Connector Style:
BNC, Mini
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Shield Termination:
Crimp
REACH Status:
Vendor Undefined
Includes:

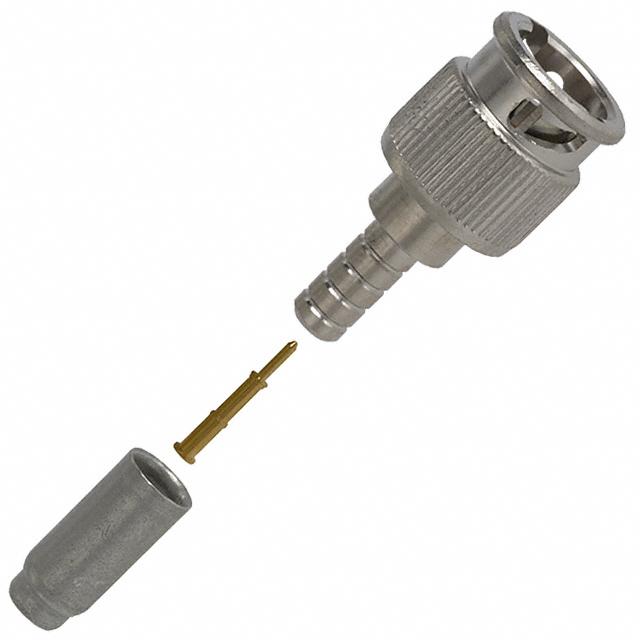

3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
2 GHz
Housing Color:
Silver
Impedance:
75 Ohms
Cable Group:
AT&T 735A
Voltage Rating:
300 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
1274563
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1274563-1. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -40°c ~ 85°c operating temperature range. It comes in bnc, mini connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. It has a crimp shield termination. In addition, it is vendor undefined. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 2 ghz. It has an integral silver housing colour. It has an impedance value of 75 ohms. Cable Group Options: at&t 735a. Moreover, the product has a nominal 300 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to 1274563, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
1274563 Drawing(Reliability Documents)
pdf icon
1274563 Product Improvement 28/Feb/2019(PCN Design/Specification)
pdf icon
1274563 Product Improvement 21/Feb/2019(PCN Design/Specification)
