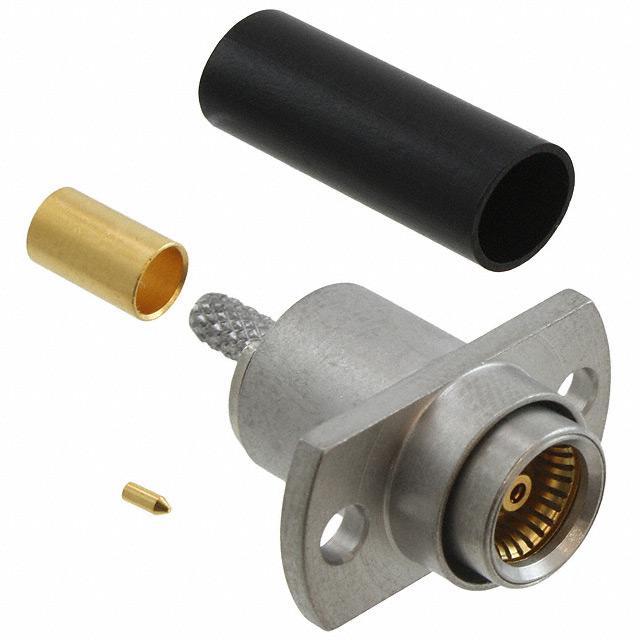

TE Connectivity AMP Connectors 1059541-1

1059541-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
Flange
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 125°C
Connector Style:
OSP, Mini
Body Finish:
-
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Shield Termination:
Crimp
REACH Status:
REACH Affected
Includes:
2 pcs - 1 Connector, 1 Heat Shrink
edacadModel:
1059541-1 Models
Frequency - Max:
18 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/1971357
Impedance:
50 Ohms
Cable Group:
RG-179, 187, 188, 316
Voltage Rating:
250 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Stainless Steel
Fastening Type:
Snap-On
Mating Cycles:
5000
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
Blindmate
Packaging:
Bulk
Contact Termination:
Solder
Base Product Number:
1059541
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1059541-1. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The product's mounting feature includes flange. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 125°c operating temperature range. It comes in osp, mini connector style. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. It has a crimp shield termination. In addition, it is reach affected. The product is also supplied with 2 pcs - 1 connector, 1 heat shrink. It maximum frequency is 18 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-179, 187, 188, 316. Moreover, the product has a nominal 250 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from stainless steel materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 5000. The product is available in panel mount configuration. The product blindmate, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to 1059541, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
End of Life 16/DEC/2021(PCN Obsolescence/ EOL)
