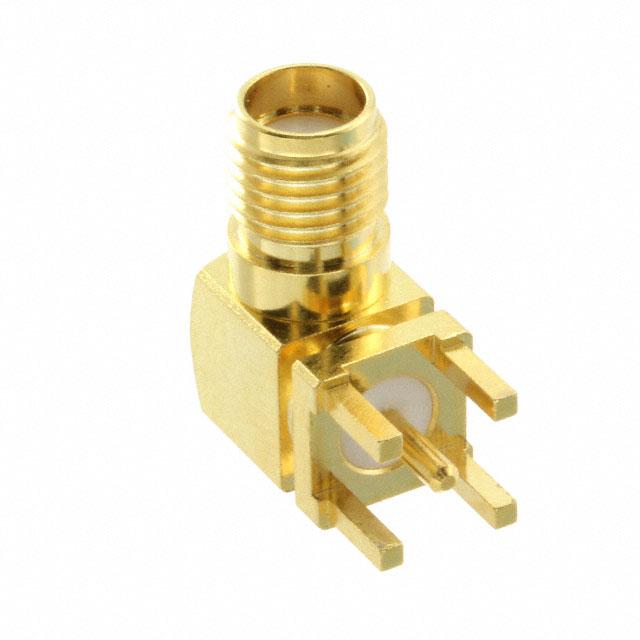

Samtec Inc. SMA-J-P-H-RA-TH1

SMA-J-P-H-RA-TH1 Samtec Inc.
SMA-J-P-H-RA-TH1
Samtec Inc.

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 125°C
Connector Style:
SMA
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
6 Weeks
title:
SMA-J-P-H-RA-TH1
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:
-
edacadModel:
SMA-J-P-H-RA-TH1 Models
Frequency - Max:
20 GHz
Housing Color:
Gold
edacadModelUrl:
/en/models/2664715
Impedance:
50 Ohms
Cable Group:
-
Voltage Rating:
335 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
-
Center Contact Plating:
Gold
Packaging:
Tray
Contact Termination:
Solder
Base Product Number:
SMA-J
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is SMA-J-P-H-RA-TH1. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 125°c operating temperature range. It comes in sma connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 6 weeks standard lead time. It has a solder shield termination. In addition, it is reach affected. It maximum frequency is 20 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. Moreover, the product has a nominal 335 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. The product is available in through hole, right angle configuration. The center contact is plated with a [Center Contract Plating]. In addition, tray is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to sma-j, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
tc0612-0978 Test Reports 02(Reliability Documents)
pdf icon
50 Ohm SMA Jack Board Connector(Datasheets)
pdf icon
SMA Datasheet(Datasheets)
pdf icon
SMA Series Other Related Documents 03(Other Related Documents)
pdf icon
SMA-J-P-x-RA-TH1 Drawing(Product Drawings)
