TE Connectivity AMP Connectors 1057243-1

1057243-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
N Type
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Voltage Rating:
1000 V
REACH Status:
REACH Affected
Includes:

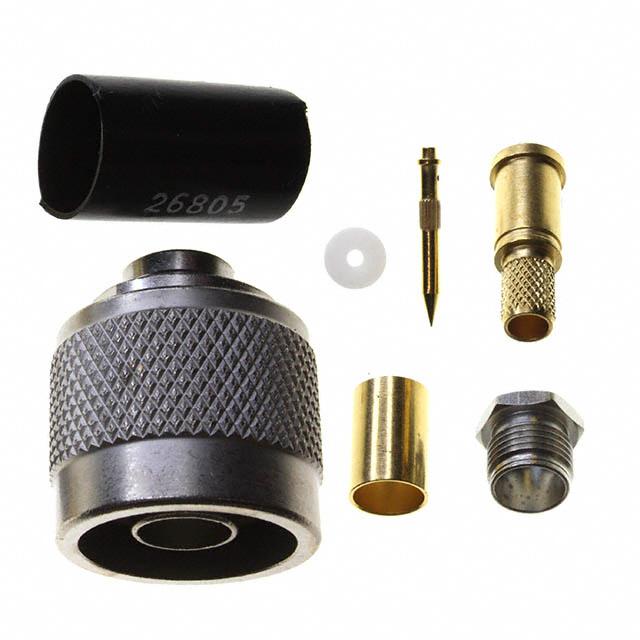

6 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Heat Shrink, 1 Insulator, 1 Sleeve
edacadModel:
1057243-1 Models
Frequency - Max:
11 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/1140391
Impedance:
50 Ohms
Cable Group:
RG-55, 142, 223, 400
Package:
Bulk
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Contact Termination:
Solder
Base Product Number:
1057243
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1057243-1. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in n type connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 1000 v voltage rating. In addition, it is reach affected. The product is also supplied with 6 pcs - 1 connector, 1 clamp, 1 contact, 1 heat shrink, 1 insulator, 1 sleeve. It maximum frequency is 11 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-55, 142, 223, 400. It is shipped in bulk package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. It also incorporates solder contact terminals. Moreover, it corresponds to 1057243, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
End of Life 16/DEC/2021(PCN Obsolescence/ EOL)
