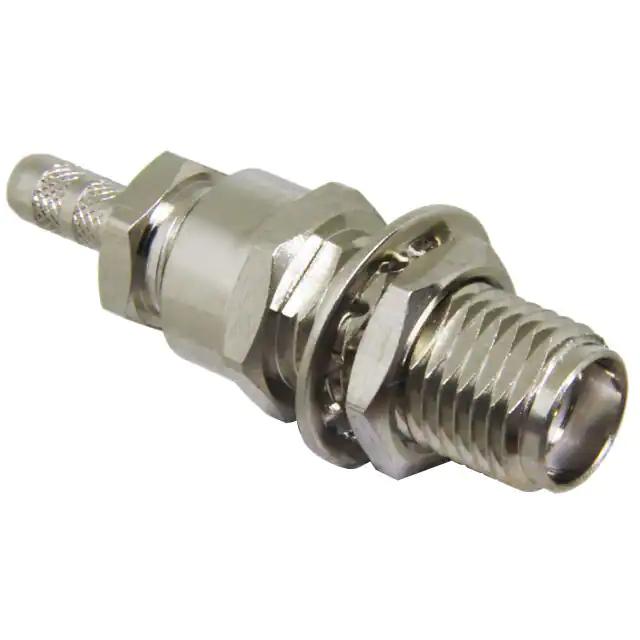

Linx Technologies Inc. CONSMA005

CONSMA005 Linx Technologies Inc.
CONSMA005
CONSMA005
Linx Technologies Inc.

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMA
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
12 Weeks
Voltage Rating:
335 V
REACH Status:
REACH Unaffected
Includes:
10 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 2 Nuts, 1 Sleeve, 1 Spacer
Frequency - Max:
12.4 GHz
Housing Color:
Silver
Impedance:
50Ohm
Cable Group:
RG-174
Package:
Bulk
Connector Type:
Receptacle, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
CONSMA
ECCN:
EAR99
Checking for live stock

This is manufactured by Linx Technologies Inc.. The manufacturer part number is CONSMA005. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The product's mounting feature includes bulkhead - front side nut. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in sma connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 12 weeks standard lead time. Moreover, the product has a nominal 335 v voltage rating. In addition, it is reach unaffected. The product is also supplied with 10 pcs - 1 connector, 1 contact, 1 ferrule, 1 heat shrink, 1 insulator, 1 lockwasher, 2 nuts, 1 sleeve, 1 spacer. It maximum frequency is 12.4 ghz. It has an integral silver housing colour. It has an impedance value of 50ohm. Cable Group Options: rg-174. It is shipped in bulk package . receptacle, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in panel mount configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to consma, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RF Connector Overview Guide~(Datasheets)
pdf icon
CONSMA005 Drawing(Datasheets)
pdf icon
SMA, Reverse Polarity SMA Specifications(Datasheets)
pdf icon
RoHS Cert(Environmental Information)
