TE Connectivity AMP Connectors 228215-1

228215-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMB
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.3dB
Center Contact Plating:
Gold
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:

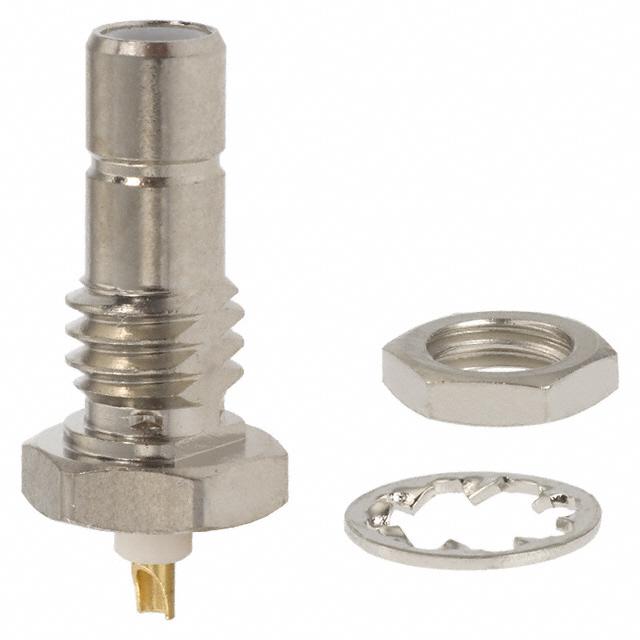

3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
edacadModel:
228215-1 Models
Frequency - Max:
4 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/292548
Impedance:
50 Ohms
Cable Group:
-
Voltage Rating:
335 V
Connector Type:
Receptacle, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
500
Ingress Protection:
-
Features:
Extended Insulation
Mounting Type:
Panel Mount
Series:
-
Packaging:
Bulk
Contact Termination:
Solder Cup
Base Product Number:
228215
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 228215-1. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The product's mounting feature includes bulkhead - front side nut. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in smb connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.3db of insertion loss. The center contact is plated with a [Center Contract Plating]. It has a solder shield termination. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 lockwasher, 1 nut. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Moreover, the product has a nominal 335 v voltage rating. receptacle, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The splendid features of the product include extended insulation. The product is available in panel mount configuration. In addition, bulk is the available packaging type of the product. It also incorporates solder cup contact terminals. Moreover, it corresponds to 228215, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
End of Life 16/DEC/2021(PCN Obsolescence/ EOL)
