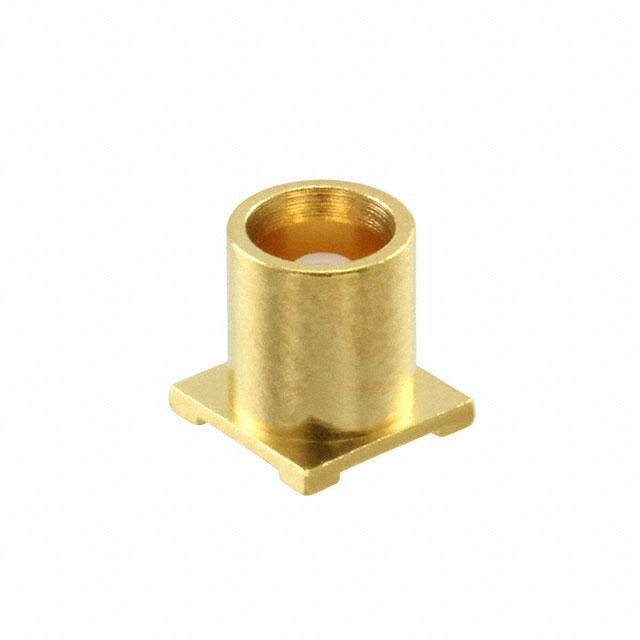

TE Connectivity AMP Connectors 966851-1

966851-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-65°C ~ 165°C
Connector Style:
MCX
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.1dB
Center Contact Plating:
Gold
Voltage Rating:
335 V
REACH Status:
REACH Affected
Includes:
-
edacadModel:
966851-1 Models
Frequency - Max:
6 GHz
Housing Color:
Gold
edacadModelUrl:
/en/models/2277760
Impedance:
50 Ohms
Cable Group:
-
Package:
Tape & Reel (TR)
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
Coaxicon
Contact Termination:
Solder
Base Product Number:
966851
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 966851-1. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The phosphor bronze material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in mcx connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.1db of insertion loss. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 335 v voltage rating. In addition, it is reach affected. It maximum frequency is 6 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. It is shipped in tape & reel (tr) package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in surface mount configuration. The product coaxicon, is a highly preferred choice for users. It also incorporates solder contact terminals. Moreover, it corresponds to 966851, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs - Mfg Location Chg 23/APR/2021(PCN Assembly/Origin)
pdf icon
Obsolete 10/NOV/2023(PCN Obsolescence/ EOL)
pdf icon
End of Life 08/DEC/2021(PCN Obsolescence/ EOL)
