TE Connectivity AMP Connectors 1057140-1

1057140-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
N Type
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Shield Termination:
Clamp
REACH Status:
REACH Affected
Includes:

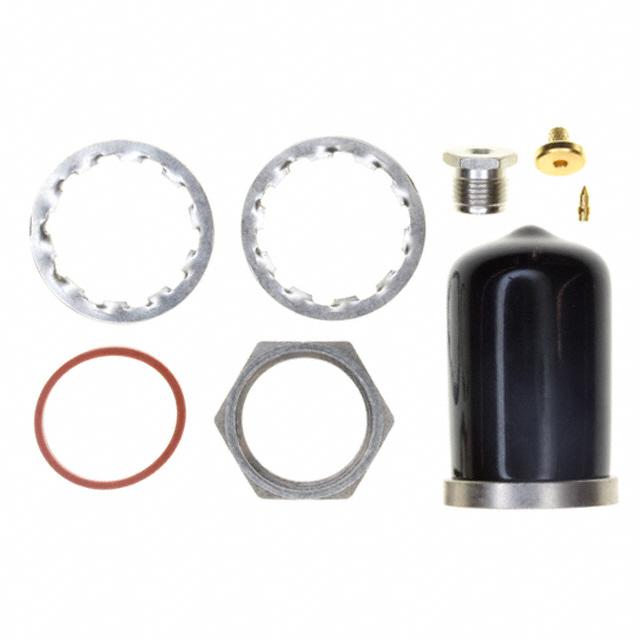

7 pcs - 1 Connector, 1 Clamp, 1 Collar, 1 Contact, 1 Gasket, 1 Lockwasher, 1 Nut
edacadModel:
1057140-1 Models
Frequency - Max:
11 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/1140392
Impedance:
50 Ohms
Cable Group:
RG-174, 179, 187, 188, 316
Voltage Rating:
1000 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
-
Packaging:
Bulk
Contact Termination:
Solder
Base Product Number:
1057
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1057140-1. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The product's mounting feature includes bulkhead - front side nut. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in n type connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. It has a clamp shield termination. In addition, it is reach affected. The product is also supplied with 7 pcs - 1 connector, 1 clamp, 1 collar, 1 contact, 1 gasket, 1 lockwasher, 1 nut. It maximum frequency is 11 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-174, 179, 187, 188, 316. Moreover, the product has a nominal 1000 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in panel mount configuration. In addition, bulk is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to 1057, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
End of Life 16/DEC/2021(PCN Obsolescence/ EOL)
