Cinch Connectivity Solutions Johnson 138-4308-407

138-4308-407 Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
N Type
Body Finish:
Tri-Alloy
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.15dB
standardLeadTime:
11 Weeks
title:
138-4308-407
Shield Termination:
Crimp
Includes:

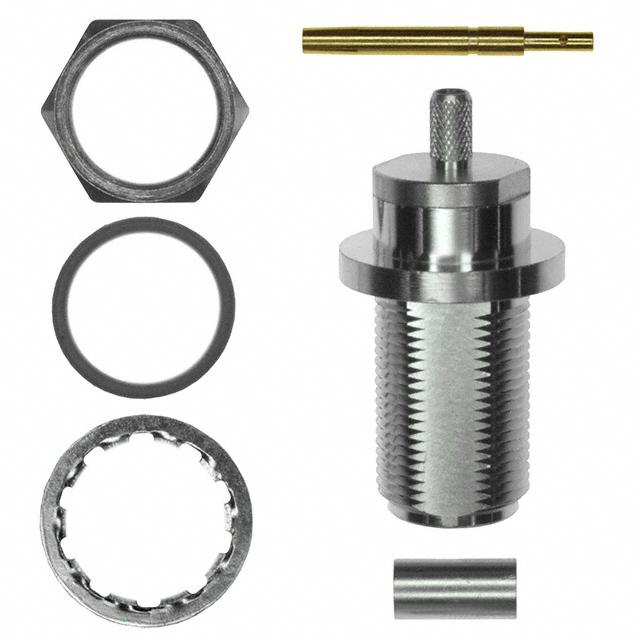

6 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve
Frequency - Max:
11 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-55, 142, 223, 400
Voltage Rating:
335 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
Gold
Packaging:
Bulk
Contact Termination:
Crimp or Solder
Base Product Number:
138-4308
ECCN:
EAR99
Checking for live stock

This is manufactured by Cinch Connectivity Solutions Johnson. The manufacturer part number is 138-4308-407. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The product's mounting feature includes bulkhead - front side nut. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in n type connector style. The body is galvanized with nice finishing of tri-alloy. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.15db of insertion loss. It has a long 11 weeks standard lead time. It has a crimp shield termination. The product is also supplied with 6 pcs - 1 connector, 1 contact, 1 gasket, 1 lockwasher, 1 nut, 1 sleeve. It maximum frequency is 11 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-55, 142, 223, 400. Moreover, the product has a nominal 335 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in panel mount configuration. The center contact is plated with a [Center Contract Plating]. In addition, bulk is the available packaging type of the product. It also incorporates crimp or solder contact terminals. Moreover, it corresponds to 138-4308, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Type N Connector(Datasheets)
pdf icon
138-4349-407 Assem Instr(Datasheets)
pdf icon
138-4308-406/407 Drawing(Product Drawings)
