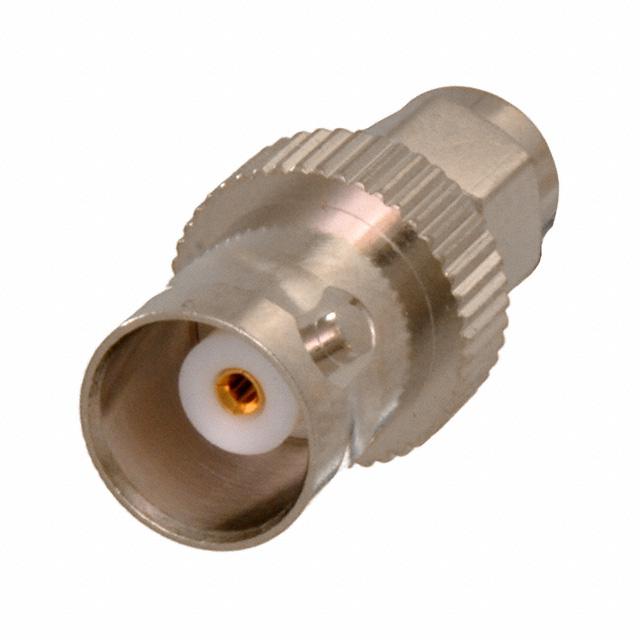

Cinch Connectivity Solutions VA506

VA506 Cinch Connectivity Solutions
Cinch Connectivity Solutions

Product Information

Style:
Straight
HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Convert From (Adapter End):
BNC Jack, Female Socket
Center Gender:
Female to Male
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Adapter Series:
BNC to SMA
standardLeadTime:
6 Weeks
Convert To (Adapter End):
SMA Plug, Male Pin
Includes:
-
Frequency - Max:
4 GHz
Impedance:
50 Ohms
Mounting Feature:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Brass
Fastening Type:
Bayonet Lock, Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Conversion Type:
Between Series
Adapter Type:
Plug to Jack
Base Product Number:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Cinch Connectivity Solutions. The manufacturer part number is VA506. Additionally, the product is designed with straight Style. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. It has conversion specifications from bnc jack, female socket. Its center comes as a female to male. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The adapter has a bnc to sma series. It has a long 6 weeks standard lead time. Can effectively be converted to sma plug, male pin. It maximum frequency is 4 ghz. It has an impedance value of 50 ohms. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product's body is nicely designed from brass materials. Furthermore, bayonet lock, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. Features between series conversion type. The adapter is a plug to jack. The product is designated with the ear99 code number.
