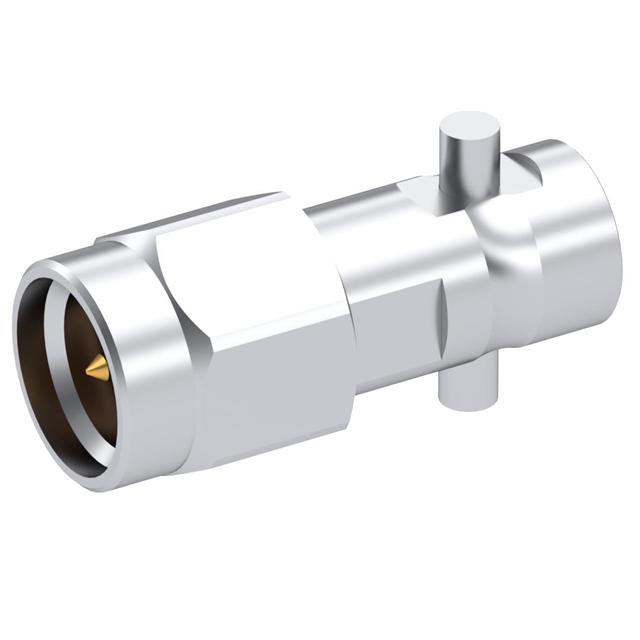

Radiall USA, Inc. 5914-9503-000

5914-9503-000 Radiall USA, Inc.
Radiall USA, Inc.

Product Information

Style:
Straight
HTSUS:
8536.69.4010
Convert From (Adapter End):
SMA Plug, Male Pin
Center Gender:
Female to Male
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Body Finish:
-
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Adapter Series:
SMA to QCD
Center Contact Plating:
Gold
title:
5914-9503-000
Includes:
-
Frequency - Max:
26 GHz
Impedance:
50 Ohms
Mounting Feature:
-
Convert To (Adapter End):
QCD Jack, Female Socket
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
Stainless Steel
Fastening Type:
Bayonet Lock, Threaded
Mating Cycles:
5000
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Conversion Type:
Same Series
Packaging:
Bulk
Adapter Type:
Plug to Jack
Base Product Number:
5914-9503
ECCN:
EAR99
Checking for live stock

This is manufactured by Radiall USA, Inc.. The manufacturer part number is 5914-9503-000. Additionally, the product is designed with straight Style. It is assigned with possible HTSUS value of 8536.69.4010. It has conversion specifications from sma plug, male pin. Its center comes as a female to male. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The adapter has a sma to qcd series. The center contact is plated with a [Center Contract Plating]. It maximum frequency is 26 ghz. It has an impedance value of 50 ohms. Can effectively be converted to qcd jack, female socket. Its typical moisture sensitivity level is not applicable. The product's body is nicely designed from stainless steel materials. Furthermore, bayonet lock, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 5000. The product is available in free hanging (in-line) configuration. Features same series conversion type. In addition, bulk is the available packaging type of the product. The adapter is a plug to jack. Moreover, it corresponds to 5914-9503, a base product number of the product. The product is designated with the ear99 code number.
