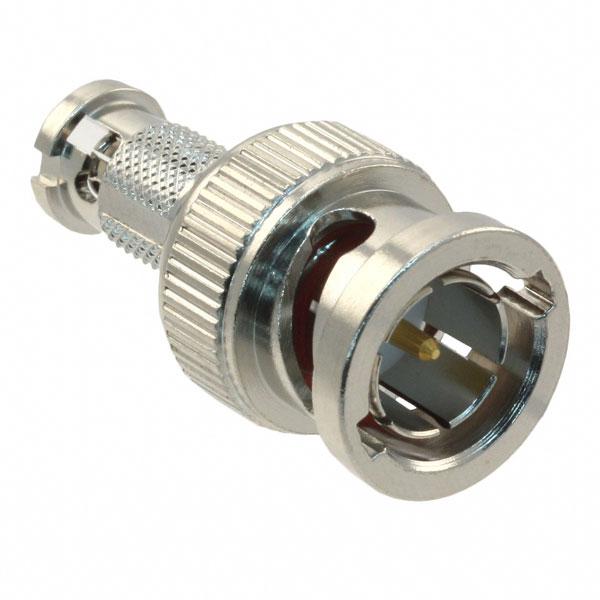

Amphenol RF APH-BNCP-HDBNCP

APH-BNCP-HDBNCP Amphenol RF
APH-BNCP-HDBNCP
Amphenol RF

Product Information

Body Orientation:
Straight
Gender B:
Male
Gender A:
Male
Operating Frequency:
3GHz
Length:
28.49mm
Adapter Type:
BNC Plug to BNC Plug
Contact Plating:
Gold
Adapter Type A:
BNC
Impedance:
75Ω
Adapter Type B:
HD BNC
Contact Material:
Beryllium Copper
Style:
Straight
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Convert From (Adapter End):
BNC HD Plug, Male Pin
Center Gender:
Male to Male
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Adapter Series:
BNC, HD to BNC
standardLeadTime:
12 Weeks
title:
APH-BNCP-HDBNCP
REACH Status:
REACH Affected
Includes:
-
Frequency - Max:
3 GHz
Impedance:
75 Ohms
Mounting Feature:
-
Convert To (Adapter End):
BNC Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Brass
Fastening Type:
Bayonet Lock, Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Conversion Type:
Between Series
Packaging:
Bulk
Adapter Type:
Plug to Plug
Base Product Number:
APH-BNCP
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is APH-BNCP-HDBNCP. It has straight body orientation. Its gender B is male . It has a male gender A . Furthermore, the product has 3ghz operating frequency range. Its accurate length is 28.49mm. The adapter is a bnc plug to bnc plug. The high-quality gold is used as contact plating material. Its adapter type A is of bnc . It has an impedance value of 75ω. It has a standard hd bnc type adapter A . The product is made from sturdy beryllium copper materials. Additionally, the product is designed with straight Style. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. It has conversion specifications from bnc hd plug, male pin. Its center comes as a male to male. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The adapter has a bnc, hd to bnc series. It has a long 12 weeks standard lead time. In addition, it is reach affected. It maximum frequency is 3 ghz. It has an impedance value of 75 ohms. Can effectively be converted to bnc plug, male pin. Its typical moisture sensitivity level is 1 (unlimited). The product's body is nicely designed from brass materials. Furthermore, bayonet lock, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. Features between series conversion type. In addition, bulk is the available packaging type of the product. The adapter is a plug to plug. Moreover, it corresponds to aph-bncp, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
High Density BNC Connectors Catalogue(Technical Reference)
pdf icon
aph-bncp-hdbncp Datasheet(Technical Reference)
pdf icon
APH-BNCP-HDBNCP Drawing(Datasheets)
