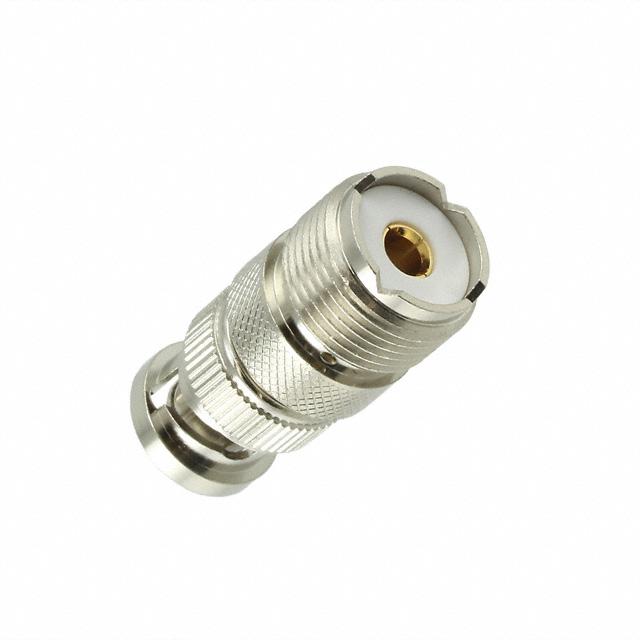

Winchester Interconnect 3317505

3317505 Winchester Interconnect
Winchester Interconnect

Product Information

Style:
Straight
HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Convert From (Adapter End):
BNC Plug, Male Pin
Center Gender:
Female to Male
Center Contact Material:
Brass
Operating Temperature:
-55°C ~ 100°C
Body Finish:
Nickel
Dielectric Material:
-
Insertion Loss:
-
Adapter Series:
BNC to UHF
Center Contact Plating:
Gold
Convert To (Adapter End):
UHF Jack, Female Socket
Includes:
-
Frequency - Max:
1 GHz
Impedance:
50 Ohms
Mounting Feature:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Brass
Fastening Type:
Bayonet Lock, Threaded
Mating Cycles:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Conversion Type:
Between Series
Adapter Type:
Plug to Jack
Base Product Number:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Winchester Interconnect. The manufacturer part number is 3317505. Additionally, the product is designed with straight Style. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. It has conversion specifications from bnc plug, male pin. Its center comes as a female to male. The brass material is utilised for designing its center contacts. The product has -55°c ~ 100°c operating temperature range. The body is galvanized with nice finishing of nickel. The adapter has a bnc to uhf series. The center contact is plated with a [Center Contract Plating]. Can effectively be converted to uhf jack, female socket. It maximum frequency is 1 ghz. It has an impedance value of 50 ohms. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product's body is nicely designed from brass materials. Furthermore, bayonet lock, threaded is the Fastening Type of the product. The product is available in free hanging (in-line) configuration. Features between series conversion type. The adapter is a plug to jack. The product is designated with the ear99 code number.
