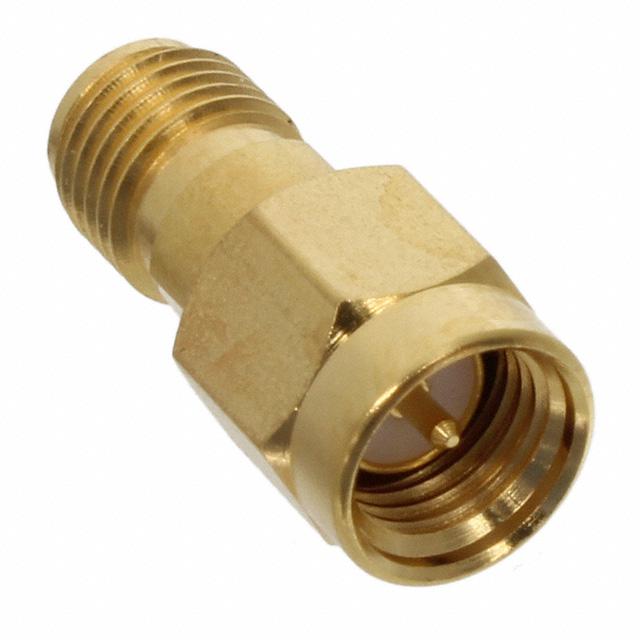

TE Connectivity AMP Connectors 1054425-1

1054425-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Style:
Straight
HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Convert From (Adapter End):
SMA Plug, Male Pin
Center Gender:
Female to Male
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 125°C
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Adapter Series:
SMA to SMA
Center Contact Plating:
Gold
REACH Status:
REACH Affected
Includes:
-
edacadModel:
1054425-1 Models
Frequency - Max:
18 GHz
edacadModelUrl:
/en/models/2053999
Impedance:
50 Ohms
Mounting Feature:
-
Convert To (Adapter End):
SMA Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Stainless Steel
Fastening Type:
Threaded, Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Conversion Type:
Same Series
Packaging:
Bulk
Adapter Type:
Plug to Jack
Base Product Number:
1054
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1054425-1. Additionally, the product is designed with straight Style. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. It has conversion specifications from sma plug, male pin. Its center comes as a female to male. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 125°c operating temperature range. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The adapter has a sma to sma series. The center contact is plated with a [Center Contract Plating]. In addition, it is reach affected. It maximum frequency is 18 ghz. It has an impedance value of 50 ohms. Can effectively be converted to sma jack, female socket. Its typical moisture sensitivity level is 1 (unlimited). The product's body is nicely designed from stainless steel materials. Furthermore, threaded, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. Features same series conversion type. In addition, bulk is the available packaging type of the product. The adapter is a plug to jack. Moreover, it corresponds to 1054, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs - drawing chg 04/JUN/2021(PCN Design/Specification)
pdf icon
End of Life 16/DEC/2021(PCN Obsolescence/ EOL)
