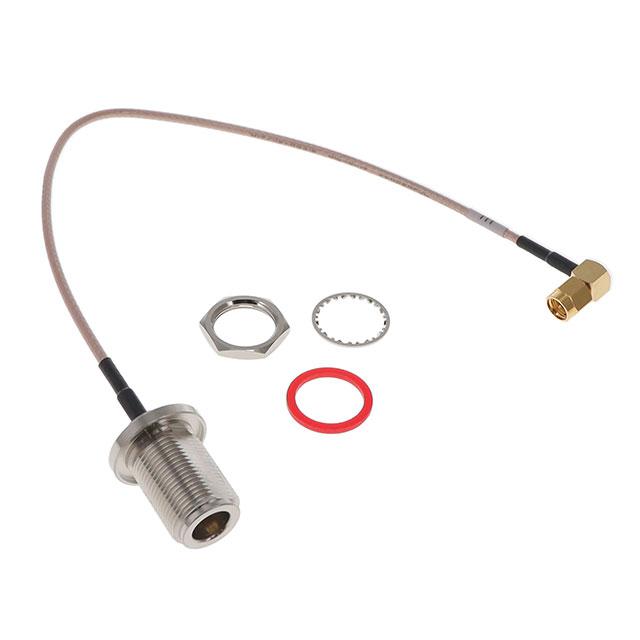

Samtec Inc. RF316-01RP1-06BJ2-0305

RF316-01RP1-06BJ2-0305 Samtec Inc.
Samtec Inc.

Product Information

Style:
N-Type to SMA
2nd Connector Mounting Type:
Free Hanging (In-Line)
HTSUS:
8544.20.0000
RoHS Status:
ROHS3 Compliant
2nd Contact Gender:
Male
1st Connector:
N-Type Jack
Operating Temperature:
-50°C ~ 165°C
2nd Connector:
SMA Plug, Right Angle
Connector Impedance:
50 Ohms
title:
RF316-01RP1-06BJ2-0305
REACH Status:
REACH Affected
Cable Impedance:
50 Ohms
Frequency - Max:
6 GHz
Manufacturer:
Samtec Inc.
Overall Impedance:
50 Ohms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
12.01" (305.00mm)
1st Contact Gender:
Female
standardLeadTime:
5 Weeks
Ingress Protection:
-
Features:
-
Color:
Amber
Series:
RF316
Cable Type:
RG-316
1st Connector Mounting Feature:
Bulkhead - Front Side Nut
Packaging:
Bag
2nd Connector Mounting Feature:
-
1st Connector Mounting Type:
Panel Mount
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is RF316-01RP1-06BJ2-0305. Additionally, the product is designed with n-type to sma Style. The second integral connector has a free hanging (in-line) mounting configuration. It is assigned with possible HTSUS value of 8544.20.0000. The product is rohs3 compliant. While the second one is a male type. It first connector includes n-type jack. The product has -50°c ~ 165°c operating temperature range. The second connector is sma plug, right angle. It has 50 ohms impedance rate. In addition, it is reach affected. It has a 50 ohms cable impedance. It maximum frequency is 6 ghz. The samtec inc.'s product offers user-desired applications. It features an overall impedance value of 50 ohms. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 12.01" (305.00mm). The first contact is a female type. It has a long 5 weeks standard lead time. It has a classic amber colour. The product rf316, is a highly preferred choice for users. It is a typical rg-316 cable. The first connector has a bulkhead - front side nut mounting feature. In addition, bag is the available packaging type of the product. The first connector is configured with a panel mount mounting type. The product is designated with the ear99 code number.
