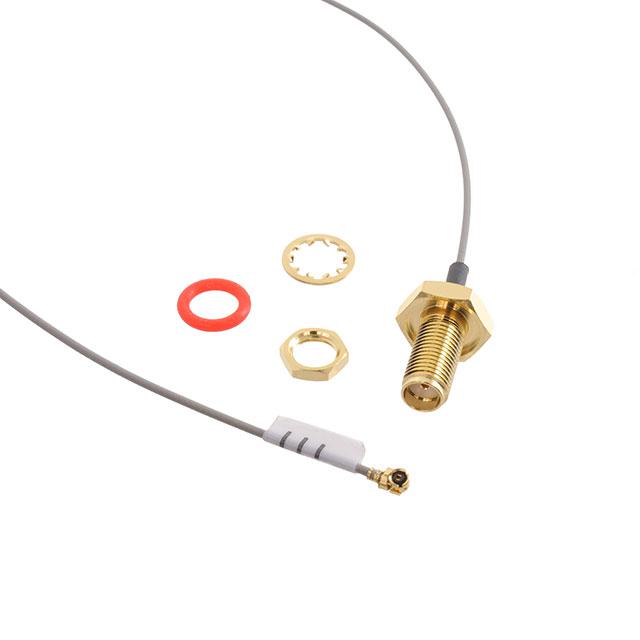

Samtec Inc. MH113-MH1RP-01SB1-0150

MH113-MH1RP-01SB1-0150 Samtec Inc.
Samtec Inc.

Product Information

Style:
U.FL (UMCC), IPEX MHF1 to SMA
2nd Connector Mounting Type:
Free Hanging (In-Line)
HTSUS:
8544.20.0000
RoHS Status:
ROHS3 Compliant
Cable Impedance:
50 Ohms
2nd Contact Gender:
Female
1st Connector:
SMA Jack
Operating Temperature:
-40°C ~ 90°C
2nd Connector:
U.FL (UMCC), IPEX MHF1 Plug, Right Angle
REACH Status:
REACH Affected
edacadModel:
MH113-MH1RP-01SB1-0150 Models
Frequency - Max:
6 GHz
edacadModelUrl:
/en/models/6691530
Package:
Bag
Overall Impedance:
50 Ohms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
5.906" (150.00mm)
1st Contact Gender:
Female
Ingress Protection:
-
Features:
Shielded
Color:
Gray
Series:
MH113
Cable Type:
1.13mm OD Coaxial Cable
1st Connector Mounting Feature:
Bulkhead - Front Side Nut
2nd Connector Mounting Feature:
-
1st Connector Mounting Type:
Panel Mount
Base Product Number:
MH113-MH1RP
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is MH113-MH1RP-01SB1-0150. Additionally, the product is designed with u.fl (umcc), ipex mhf1 to sma Style. The second integral connector has a free hanging (in-line) mounting configuration. It is assigned with possible HTSUS value of 8544.20.0000. The product is rohs3 compliant. It has a 50 ohms cable impedance. While the second one is a female type. It first connector includes sma jack. The product has -40°c ~ 90°c operating temperature range. The second connector is u.fl (umcc), ipex mhf1 plug, right angle. In addition, it is reach affected. It maximum frequency is 6 ghz. It is shipped in bag package . It features an overall impedance value of 50 ohms. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 5.906" (150.00mm). The first contact is a female type. The splendid features of the product include shielded. It has a classic gray colour. The product mh113, is a highly preferred choice for users. It is a typical 1.13mm od coaxial cable cable. The first connector has a bulkhead - front side nut mounting feature. The first connector is configured with a panel mount mounting type. Moreover, it corresponds to mh113-mh1rp, a base product number of the product. The product is designated with the ear99 code number.
