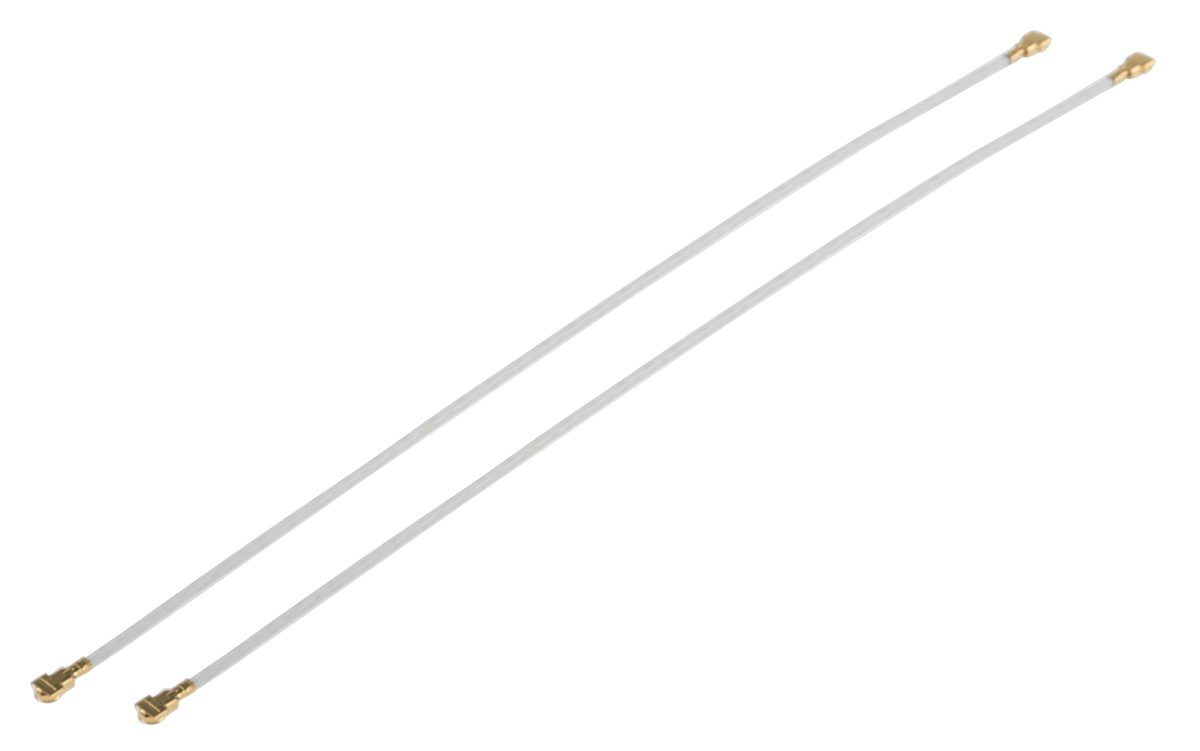

Hirose 50 Ω Coaxial Cable Assembly, 100mm Length, SMT cable type

X-FL-2LP-04N1TV-A--100- Hirose 50 Ω Coaxial Cable Assembly, 100mm Length, SMT cable type
X.FL-2LP-04N1TV-A-(100)
Hirose

Product Information

Terminated/Unterminated:
Terminated
Outer Diameter:
0.81mm
Shielding:
Tin Plated Braided Wire
Sheath Material:
FEP
Operating Temperature Range:
-40 → +90 °C
Core Strands:
7/0.05
Maximum Operating Temperature:
+90°C
Voltage Rating:
100 V dc, 200 V ac
Connector 1 Orientation:
Right Angle
Connector 1 Gender:
Male
Length:
100mm
Coaxial Type:
SMT
Characteristic Impedance:
50 Ω
Connector 2 Orientation:
Right Angle
Connector 2 Gender:
Male
Conductor Material:
Silvered Plated Copper
Series:
X.FL
Sheath Colour:
Grey
Minimum Operating Temperature:
-40°C
Connector 2:
X.FL
Connector 1:
X.FL
Insulation Material:
FEP
RoHs Compliant
Checking for live stock

This is 50 Ω Coaxial Cable Assembly 100mm Length SMT cable type manufactured by Hirose. The manufacturer part number is X.FL-2LP-04N1TV-A-(100). Termination Options -terminated. Its outer diameter is 0.81mm. Furthermore, the product is shielded with tin plated braided wire. The sheath is constructed from durable and adorable fep material. The product has -40 → +90 °c of operating temperature range. The core strands are 7/0.05. It has a maximum operating temperature of +90°c. Moreover, the product has a nominal 100 v dc, 200 v ac voltage rating. The connector 1 has a right angle orientation. This connector 1 is a male. Its accurate length is 100mm. It has a/an smt type coaxial . The typical characteristic impedance includes 50 ω. In addition, its connector 2 orientation is right angle . Connector 2 is a male connector. The conductor is made from silvered plated copper material. The product x.fl, is a highly preferred choice for users. The sheath has an adorable grey colour. Whereas, the minimum operating temperature of the product is -40°c. While the Connector 2 is x.fl. Connector 1 is x.fl. It has a robust fep insulation material.

pdf icon
X.FL Cable Assembly drawing(Technical Reference)
pdf icon
X.FL Catalogue(Technical Reference)
