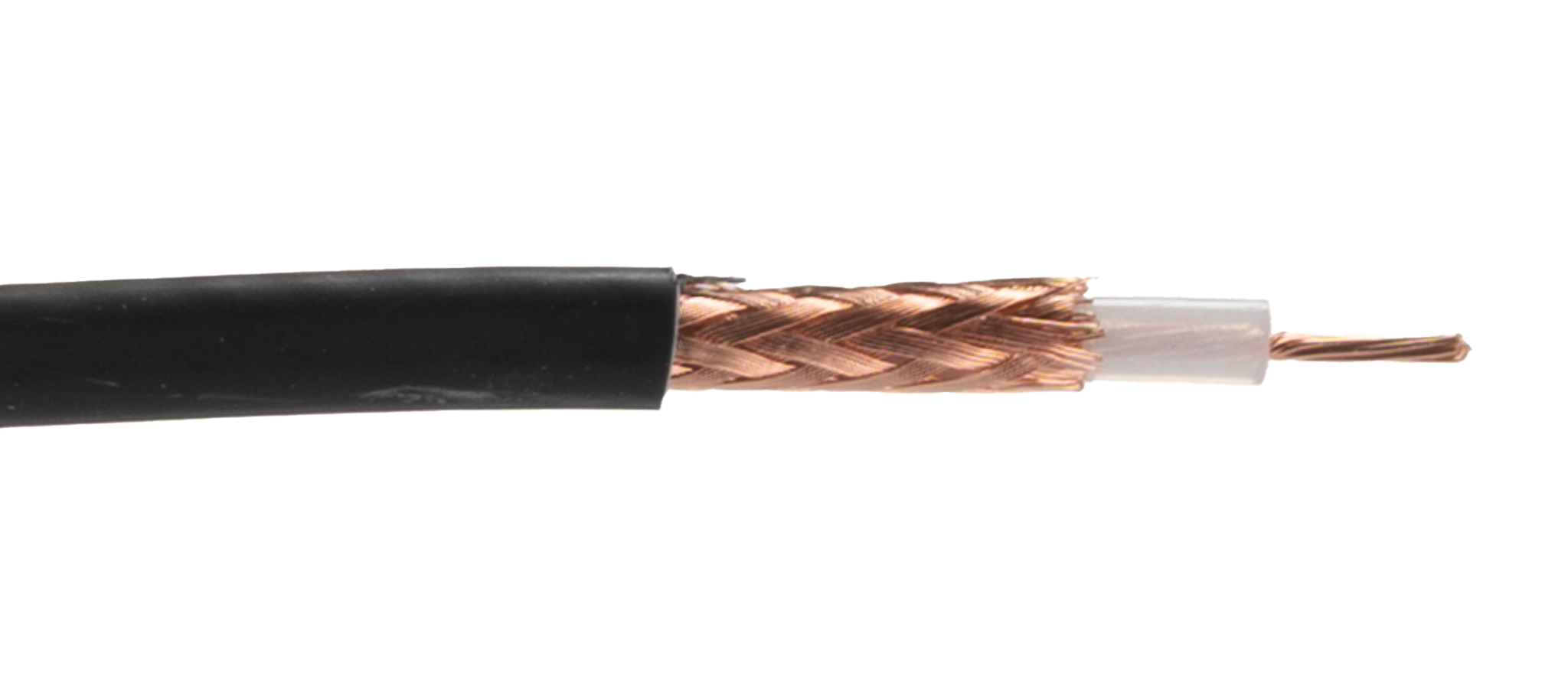

Belden URM76NH.01100 Black URM76 Coaxial Cable, Flame Retardant Non Corrosive (FRNC) Sheath

URM76NH-01100 Belden URM76NH.01100 Black URM76 Coaxial Cable, Flame Retardant Non Corrosive (FRNC) Sheath
URM76NH.01100
Belden

Product Information

Capacitance:
98pF/m
Terminated/Unterminated:
Unterminated
CPR Certification:
Eca
Outer Diameter:
5mm
Attenuation:
15.5 dB/100m @ 100MHz, 22.2 dB/100m @ 200MHz, 39.8 dB/100m @ 600MHz, 52.7 dB/100m @ 1GHz
Shielding:
Braid
Standards Met:
IEC 60332-1-2
Core Strands:
7/0.3
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+70°C
Velocity ratio:
66%
Operating Temperature Range:
-15 → +70 °C
Fire Behaviour:
Flame Retardant, Low Smoke Zero Halogen (LSZH)
Length:
100m
Coaxial Type:
URM76
Number of Strands:
7
Characteristic Impedance:
50 Ω
Sheath Material:
Flame Retardant Non-Corrosive (FRNC)
Conductor Material:
Tinned Copper
Series:
URM76NH
Size of Strands:
0.32 mm
Sheath Colour:
Black
Minimum Operating Temperature:
-15°C
Insulation Material:
PE
RoHs Compliant
Checking for live stock

This is Black URM76 Coaxial Cable Flame Retardant Non Corrosive (FRNC) Sheath manufactured by Belden. The manufacturer part number is URM76NH.01100. It provides a 98pf/m of capacitance value. Termination Options -unterminated. Its outer diameter is 5mm. Its attenuation is about 15.5 db/100m @ 100mhz, 22.2 db/100m @ 200mhz, 39.8 db/100m @ 600mhz, 52.7 db/100m @ 1ghz . Furthermore, the product is shielded with braid. The product complies with all safety standards, such as iec 60332-1-2. The core strands are 7/0.3. It has a stranded type conductor strand . It has a maximum operating temperature of +70°c. Its velocity ratio is 66% . The product has -15 → +70 °c of operating temperature range. The product has a flame retardant, low smoke zero halogen (lszh) fire behaviour. Its accurate length is 100m. It has a/an urm76 type coaxial . Additionally, it contains 7 strands. The typical characteristic impedance includes 50 ω. The sheath is constructed from durable and adorable flame retardant non-corrosive (frnc) material. The conductor is made from tinned copper material. The product urm76nh, is a highly preferred choice for users. The strand size includes 0.32 mm. The sheath has an adorable black colour. Whereas, the minimum operating temperature of the product is -15°c. It has a robust pe insulation material.
