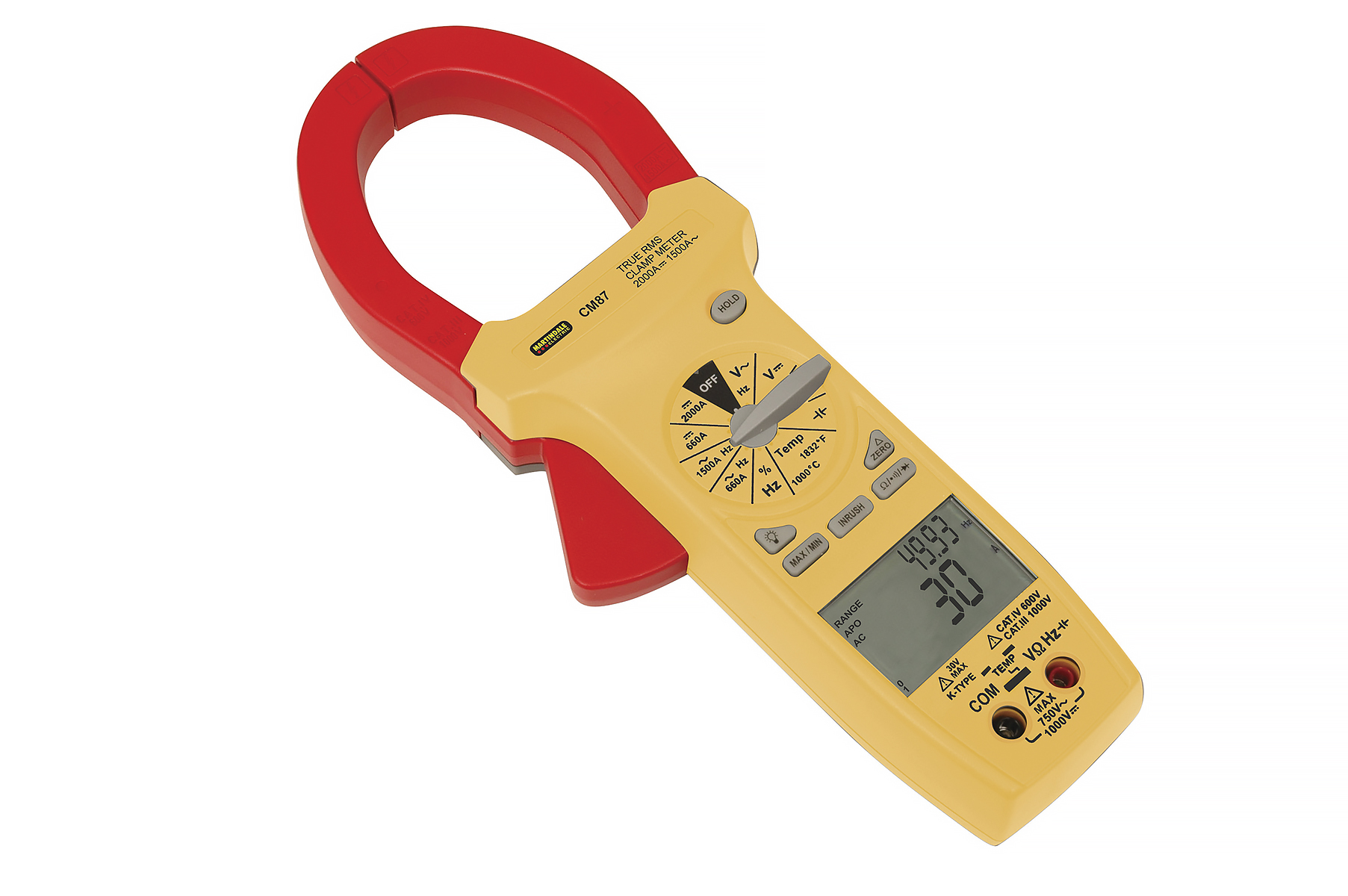

Martindale MARCM87 Clamp Meter, 2kA dc, Max Current 1.5kA ac CAT II 1000 V; 10 A, CAT III 1000 V; 10 A, CAT IV 600 V

CM87 Martindale MAR Clamp Meter, 2kA dc, Max Current 1.5kA ac CAT II 1000 V; 10 A, CAT III 1000 V; 10 A, CAT IV 600 V
CM87
CM87
Martindale

Product Information

Dimensions:
108 x 53 x 281mm
Power Source:
Battery
DC Current Measurement Resolution:
100mA
Maximum Conductor Size:
57mm
Width:
53mm
Battery Life:
75 h
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
100mA
Best Temperature Measurement Accuracy:
±1.0% + 2 Digits
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
750V ac
Model Number:
MARCM87
Best AC Voltage Accuracy:
±(1.5% rdg + 8dgts)
Absolute Maximum AC Current Measurement:
1500A ac
Battery Type:
9V
Absolute Maximum Resistance Measurement:
66MΩ
Maximum Operating Temperature:
+40°C
Jaw Capacity Busbars:
57mm
Safety Category Level:
CAT II, CAT III, CAT IV
Length:
108mm
Temperature Measurement Resolution:
1°C
Absolute Maximum Temperature Measurement:
+1000°C
Absolute Maximum DC Current Measurement:
2000A dc
Display Type:
Bar Graphs, LCD
Best Resistance Measurement Accuracy:
±1.0% + 5 Digits
Best DC Current Accuracy:
±(2% rdg + 5dgts)
Weight:
585g
AC Voltage Measurement Resolution:
1mV
Best AC Current Accuracy:
±(2% rdg + 10dgts)
Safety Category Voltage:
1000 (CAT II & CAT III) V, 600 (CAT IV) V
Absolute Maximum DC Voltage Measurement:
1000V dc
Height:
281mm
Safety Category:
CAT II 1000 V; 10 A, CAT III 1000 V; 10 A, CAT IV 600V
Best DC Voltage Accuracy:
±(0.5% rdg + 2dgts)
DC Voltage Measurement Resolution:
1mV
Clamp Meter Type:
AC/DC Clamp Meter
Minimum Operating Temperature:
0°C
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Checking for live stock

This is MAR Clamp Meter 2kA dc Max Current 1.5kA ac CAT II 1000 V; 10 A CAT III 1000 V; 10 A CAT IV 600 V manufactured by Martindale. The manufacturer part number is CM87. The given dimensions of the product include 108 x 53 x 281mm. Moreover, the product gets power from battery. It has about 100ma DC current measurement resolution . Moreover, it has a maximum 57mm size conductor . Furthermore, the product is 53mm wide. Its battery life is about 75 h . It has approximately 100mω resistance measurement resolution . In addition, it has about 100ma AC current measurement resolution . It has about ±1.0% + 2 digits best temperature measurement accuracy . It has a True RMS feature yes . Additionally, it has an absolute maximum 750v ac voltage measurement . It has a model number marcm87. Its best AC voltage accuracy is about ±(1.5% rdg + 8dgts) . It has an absolute maximum 1500a ac current measurement . This 9v battery is comparatively much efficient than common batteries. Moreover, it has an absolute maximum 66mω resistance measurement . It has a maximum operating temperature of +40°c. The product has about 57mm jaw busbars capacity . Moreover, its safety category level is cat ii, cat iii, cat iv . Its accurate length is 108mm. It has a 1°c temperature measurement resolution . Whereas, the absolute maximum temperature measurement is +1000°c . The product has an absolute maximum 2000a dc current measurement . It features a remarkable bar graphs, lcd display. It exhibits a ±1.0% + 5 digits best resistance measurement accuracy . Additionally, it has a ±(2% rdg + 5dgts) best DC current accuracy . The typical product's weight is 585g. Whereas, its AC voltage measurement resolution is 1mv . It has a ±(2% rdg + 10dgts) best AC current accuracy . Its safety category voltage is 1000 (cat ii & cat iii) v, 600 (cat iv) v . Moreover, it has an absolute maximum 1000v dc voltage measurement . In addition, the height is 281mm. It provides robust safety and is complied with cat ii 1000 v; 10 a, cat iii 1000 v; 10 a, cat iv 600v safety category. Moreover, it has a ±(0.5% rdg + 2dgts) best DC voltage accuracy . Its DC voltage measurement resolution is approximately 1mv . It has a/an ac/dc clamp meter type clamp meter . Whereas, the minimum operating temperature of the product is 0°c. Moreover, it has an ac current, ac voltage, capacitance, dc current, dc voltage, frequency, resistance, temperature functions measured .

pdf icon
CM87 Clamp meter(Technical Reference)
