Dimensions:
111 x 41 x 296mm
Power Source:
Battery
DC Current Measurement Resolution:
10mA
Maximum Conductor Size:
60mm
DC Current Measurement Range:
0.25 to 3000 A DC
AC Current Measurement Range:
0.25 to 2000 A AC
Width:
111mm
Battery Life:
>350 h
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
10mA
True RMS:
Yes
AC Voltage Measurement Range:
0.15 to 1200 V AC
Absolute Maximum AC Voltage Measurement:
1200V ac
Model Number:

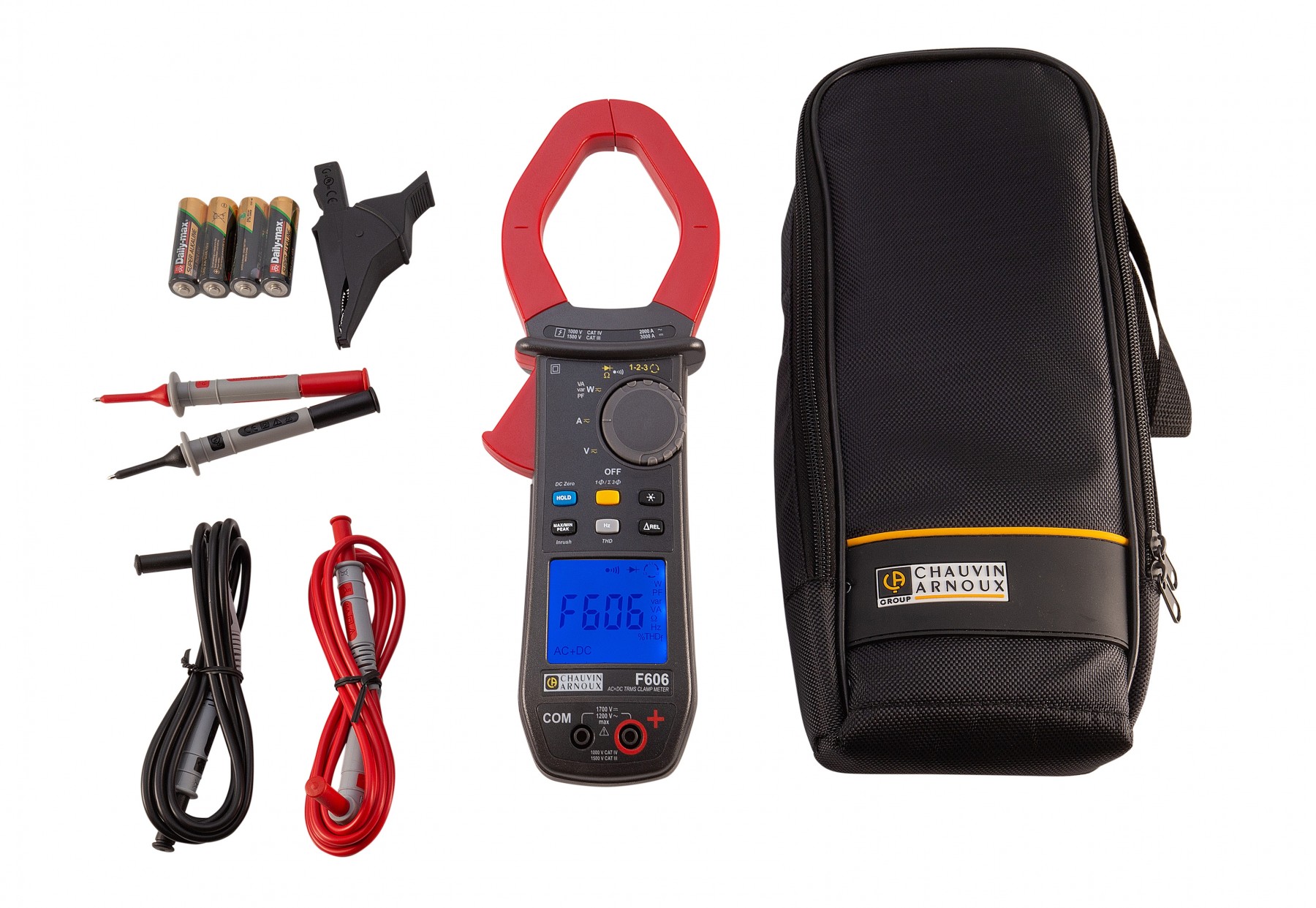

F606
Best AC Voltage Accuracy:
±(1% rdg + 3dgts)
Absolute Maximum AC Current Measurement:
2000A ac
Battery Type:
LR6
Absolute Maximum Resistance Measurement:
99.99kΩ
Maximum Operating Temperature:
+55°C
Non-Contact Voltage Detector:
No
Jaw Capacity Busbars:
60mm
Safety Category Level:
CAT III, CAT IV
Length:
296mm
Absolute Maximum DC Current Measurement:
3000A dc
Display Type:
Backlit LCD
Best Resistance Measurement Accuracy:
±1 % + 5 digits
Best DC Current Accuracy:
±(1% rdg + 3dgts)
Weight:
640g
AC Voltage Measurement Resolution:
10mV
Best AC Current Accuracy:
±(1% rdg + 3dgts)
Safety Category Voltage:
CAT III 1500 V, CAT IV 1000V
Absolute Maximum DC Voltage Measurement:
1700V dc
Height:
41mm
Safety Category:
CAT III 1500 V, CAT IV 1000V
Best DC Voltage Accuracy:
±(1% rdg + 3dgts)
DC Voltage Measurement Resolution:
10mV
Clamp Meter Type:
AC/DC Clamp Meter
Minimum Operating Temperature:
-20°C
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Phase rotation, Power, Power Factor, Resistance
