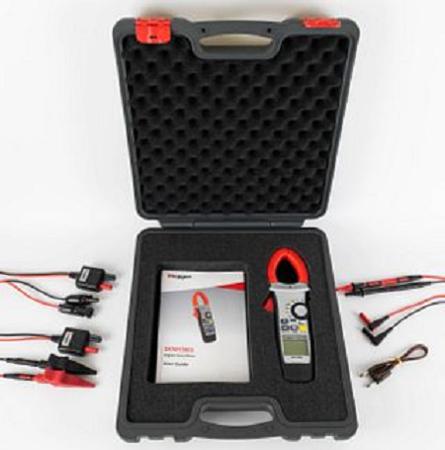

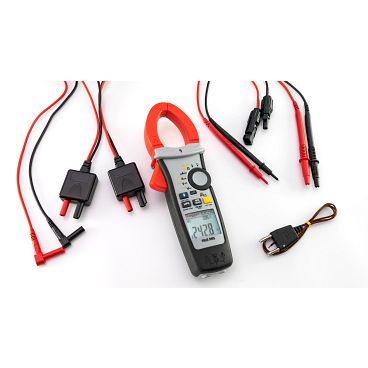

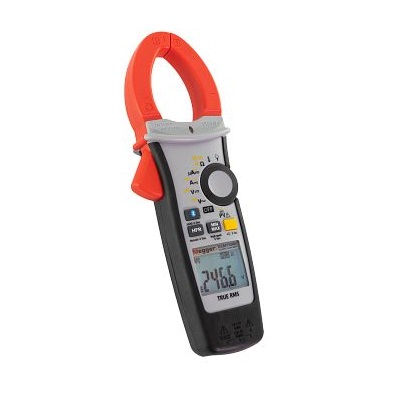

DCM1500S Solar Clamp Meter

1013-357 DCM1500S Solar Clamp Meter
1013-357
Megger

Product Information

Dimensions:
254 x 88 x 51mm
Power Source:
Battery
DC Current Measurement Resolution:
100000µA dc
Maximum Conductor Size:
42mm
DC Current Measurement Range:
60 → 1500 A
AC Current Measurement Range:
60 → 1500 A
Width:
88mm
Battery Life:
100 h
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
0.1A ac
Best Temperature Measurement Accuracy:
±(1% + 20d/36d)
True RMS:
Yes
AC Voltage Measurement Range:
80 → 1000 V
Model Number:
DCM1500S
Best AC Voltage Accuracy:
±(1.0% + 5d)
Absolute Maximum AC Current Measurement:
1500A ac
Battery Type:
LR6 1.5V
Maximum Operating Temperature:
+50°C
Non-Contact Voltage Detector:
Yes
Minimum Operating Temperature:
-10°C
Safety Category Level:
CAT III, CAT IV
Length:
254mm
Temperature Measurement Resolution:
0.1°C
Absolute Maximum Temperature Measurement:
+400°C
Absolute Maximum DC Current Measurement:
1500A dc
Display Type:
LCD
Best Resistance Measurement Accuracy:
± (0.9 % + 5 Digits)
Best DC Current Accuracy:
±(2.0% + 5d)
Weight:
470g
AC Voltage Measurement Resolution:
0.1V ac
Best AC Current Accuracy:
±(2.0% + 5d)
Safety Category Voltage:
8000V
Absolute Maximum DC Voltage Measurement:
2000V dc
Height:
51mm
Safety Category:
CAT CAT III, CAT IV
Best DC Voltage Accuracy:
±(0.7% + 2d)
DC Voltage Measurement Resolution:
0.1V dc
Clamp Meter Type:
Solar Clamp Meter
Absolute Maximum AC Voltage Measurement:
1500V ac
RoHs Compliant
Checking for live stock

This is DCM1500S Solar Clamp Meter manufactured by Megger. The manufacturer part number is 1013-357. The given dimensions of the product include 254 x 88 x 51mm. Moreover, the product gets power from battery. It has about 100000µa dc DC current measurement resolution . Moreover, it has a maximum 42mm size conductor . In addition, it has a DC Current Measurement Range of 60 → 1500 a The AC Current Measurement Range of the product is 60 → 1500 a Furthermore, the product is 88mm wide. Its battery life is about 100 h . It has approximately 100mω resistance measurement resolution . In addition, it has about 0.1a ac AC current measurement resolution . It has about ±(1% + 20d/36d) best temperature measurement accuracy . It has a True RMS feature yes . It has an AC Voltage Measurement Range of 80 → 1000 v It has a model number dcm1500s. Its best AC voltage accuracy is about ±(1.0% + 5d) . It has an absolute maximum 1500a ac current measurement . This lr6 1.5v battery is comparatively much efficient than common batteries. It has a maximum operating temperature of +50°c. It includes a non-contact voltage detector yes . Whereas, the minimum operating temperature of the product is -10°c. Moreover, its safety category level is cat iii, cat iv . Its accurate length is 254mm. It has a 0.1°c temperature measurement resolution . Whereas, the absolute maximum temperature measurement is +400°c . The product has an absolute maximum 1500a dc current measurement . It features a remarkable lcd display. It exhibits a ± (0.9 % + 5 digits) best resistance measurement accuracy . Additionally, it has a ±(2.0% + 5d) best DC current accuracy . The typical product's weight is 470g. Whereas, its AC voltage measurement resolution is 0.1v ac . It has a ±(2.0% + 5d) best AC current accuracy . Its safety category voltage is 8000v . Moreover, it has an absolute maximum 2000v dc voltage measurement . In addition, the height is 51mm. It provides robust safety and is complied with cat cat iii, cat iv safety category. Moreover, it has a ±(0.7% + 2d) best DC voltage accuracy . Its DC voltage measurement resolution is approximately 0.1v dc . It has a/an solar clamp meter type clamp meter . Additionally, it has an absolute maximum 1500v ac voltage measurement .

pdf icon
Datasheet - 1013-357(Technical Reference)
