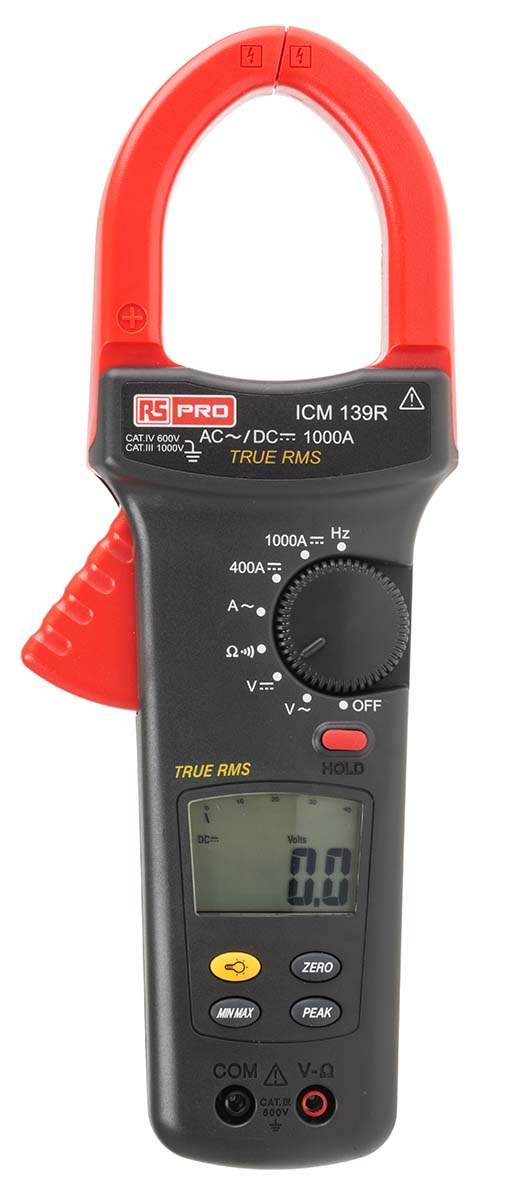

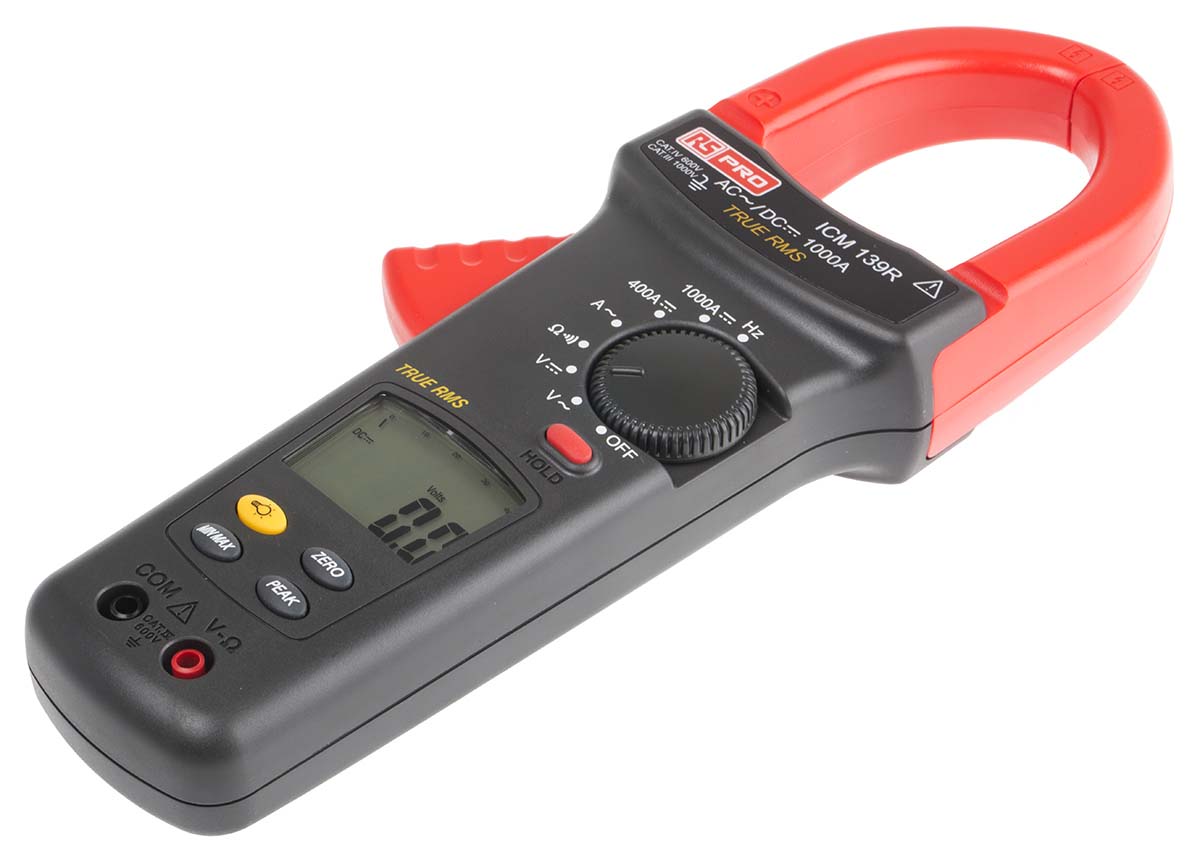

RS PRO ICM139R Clamp Meter, Max Current 1kA ac, 1kA dc CAT III 1000 V, CAT IV 600 V With RS Calibration

123-3349 RS PRO ICM139R Clamp Meter, Max Current 1kA ac, 1kA dc CAT III 1000 V, CAT IV 600 V With RS Calibration
123-3349
123-3349
ET17708082
RS PRO

Product Information

Dimensions:
90 x 51 x 275mm
Power Source:
Battery
DC Current Measurement Resolution:
0.1A
Maximum Conductor Size:
51 (Dia.)mm
Width:
51mm
Battery Life:
300 h
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
0.1A
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
750V ac
Model Number:
ICM139R
Best AC Voltage Accuracy:
±1% + 5 Digits
Absolute Maximum AC Current Measurement:
1000A ac
Battery Type:
9V, IEC 6F22, NEDA 1604
Absolute Maximum Resistance Measurement:
400Ω
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
Safety Category Level:
CAT III, CAT IV
Length:
90mm
Calibrated:
RSCAL
Best DC Current Accuracy:
±1.9% + 5 Digits
Absolute Maximum DC Current Measurement:
1000A dc
Display Type:
LCD
Best Resistance Measurement Accuracy:
±1% + 3 Digits
Jaw Capacity Busbars:
53mm
Weight:
420g
AC Voltage Measurement Resolution:
100mV
Best AC Current Accuracy:
±1.9% +5 digits
Safety Category Voltage:
600 V, 1000 V
Absolute Maximum DC Voltage Measurement:
1000V dc
Height:
275mm
Safety Category:
CAT III 1000 V, CAT IV 600 V
Best DC Voltage Accuracy:
±0.7% + 2 Digits
DC Voltage Measurement Resolution:
100mV dc
Clamp Meter Type:
AC/DC Clamp Meter
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance
RoHs Compliant
Checking for live stock

This is ICM139R Clamp Meter Max Current 1kA ac 1kA dc CAT III 1000 V CAT IV 600 V With RS Calibration manufactured by RS PRO. The manufacturer part number is 123-3349. The given dimensions of the product include 90 x 51 x 275mm. Moreover, the product gets power from battery. It has about 0.1a DC current measurement resolution . Moreover, it has a maximum 51 (dia.)mm size conductor . Furthermore, the product is 51mm wide. Its battery life is about 300 h . It has approximately 100mω resistance measurement resolution . In addition, it has about 0.1a AC current measurement resolution . It has a True RMS feature yes . Additionally, it has an absolute maximum 750v ac voltage measurement . It has a model number icm139r. Its best AC voltage accuracy is about ±1% + 5 digits . It has an absolute maximum 1000a ac current measurement . This 9v, iec 6f22, neda 1604 battery is comparatively much efficient than common batteries. Moreover, it has an absolute maximum 400ω resistance measurement . It has a maximum operating temperature of +50°c. Whereas, the minimum operating temperature of the product is 0°c. Moreover, its safety category level is cat iii, cat iv . Its accurate length is 90mm. It is calibrated rscal . Additionally, it has a ±1.9% + 5 digits best DC current accuracy . The product has an absolute maximum 1000a dc current measurement . It features a remarkable lcd display. It exhibits a ±1% + 3 digits best resistance measurement accuracy . The product has about 53mm jaw busbars capacity . The typical product's weight is 420g. Whereas, its AC voltage measurement resolution is 100mv . It has a ±1.9% +5 digits best AC current accuracy . Its safety category voltage is 600 v, 1000 v . Moreover, it has an absolute maximum 1000v dc voltage measurement . In addition, the height is 275mm. It provides robust safety and is complied with cat iii 1000 v, cat iv 600 v safety category. Moreover, it has a ±0.7% + 2 digits best DC voltage accuracy . Its DC voltage measurement resolution is approximately 100mv dc . It has a/an ac/dc clamp meter type clamp meter . Moreover, it has an ac current, ac voltage, continuity, dc current, dc voltage, diode test, frequency, resistance functions measured .
