Dimensions:
112 x 46 x 271mm
Power Source:
Battery
DC Current Measurement Resolution:
100mA
Maximum Conductor Size:
55mm
Width:
46mm
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
100mA
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
600V ac

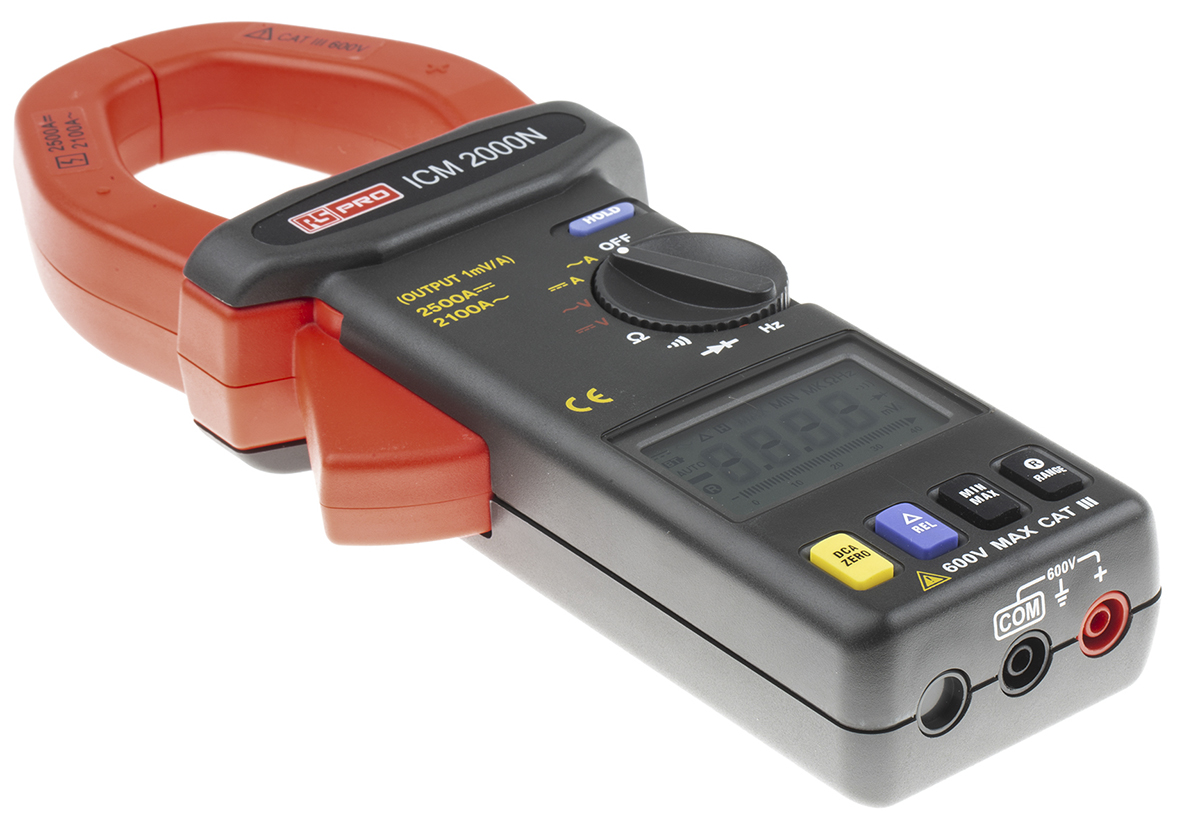

Model Number:
ICM2000N
Best AC Voltage Accuracy:
±(1.5% rdg + 5dgts)
Absolute Maximum AC Current Measurement:
2100A ac
Battery Type:
9V, IEC 6F22, NEDA 1604
Absolute Maximum Resistance Measurement:
40MΩ
Maximum Operating Temperature:
+40°C
Jaw Capacity Busbars:
55mm
Safety Category Level:
CAT III
Length:
112mm
Absolute Maximum DC Current Measurement:
2500A dc
Display Type:
LCD
Best Resistance Measurement Accuracy:
±1.5 % ± 3 Digits
Best DC Current Accuracy:
±(1.5% rdg + 3dgts)
Weight:
647g
AC Voltage Measurement Resolution:
100µV
Best AC Current Accuracy:
±(1.5% rdg + 5dgts)
Safety Category Voltage:
600V
Absolute Maximum DC Voltage Measurement:
600V dc
Height:
271mm
Safety Category:
CAT III 600 V
Best DC Voltage Accuracy:
±(1.5% rdg + 3dgts)
DC Voltage Measurement Resolution:
100µV
Clamp Meter Type:
AC/DC Clamp Meter
Minimum Operating Temperature:
0°C
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
