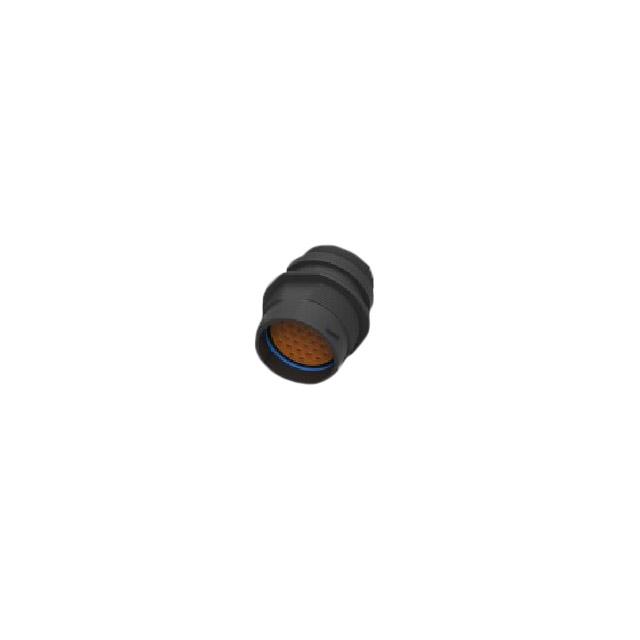

TE Connectivity Deutsch Connectors HDP24-24-31PE-L015

HDP24-24-31PE-L015 TE Connectivity Deutsch Connectors
HDP24-24-31PE-L015
TE Connectivity Deutsch Connectors

Product Information

HTSUS:
8538.90.6000
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Note:
Contacts Not Included; Jam Nut Not Included
Operating Temperature:
-55°C ~ 125°C
Shell Size, MIL:
-
Type:
For Male Pins
Number of Positions:
31
Shielding:
Unshielded
Shell Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
REACH Status:
Vendor Undefined
Includes:
-
edacadModel:
HDP24-24-31PE-L015 Models
Housing Color:
Black
Material Flammability Rating:
UL94 V-1
edacadModelUrl:
/en/models/9923068
Contact Shape:
Circular
Contact Size:
16
Package:
Bulk
Shell Size - Insert:
24-31
Connector Type:
Receptacle Housing
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Crimp
Fastening Type:
Bayonet Lock
standardLeadTime:
14 Weeks
Insert Material:
Polyetherimide (PEI)
Orientation:
Keyed
Ingress Protection:
IP68 - Dust Tight, Waterproof
Features:
Dust Cap, Ring Adapter
Mounting Type:
Panel Mount
Shell Finish:
-
Series:
HDP20
Base Product Number:
HDP24
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Deutsch Connectors. The manufacturer part number is HDP24-24-31PE-L015. It is assigned with possible HTSUS value of 8538.90.6000. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. Note: contacts not included; jam nut not included. The product has -55°c ~ 125°c operating temperature range. It comes in for male pins configuration. The product carries possible position value of 31. Furthermore, the product is shielded with unshielded. It is made from highly reliable polyamide (pa66), nylon 6/6, glass filled materials. In addition, it is vendor undefined. It has an integral black housing colour. It carries ul94 v-1 of material flammability rating. It has a typical circular shape. While it has a 16 of contact size. It is shipped in bulk package . The insert's size is 24-31. receptacle housing Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. It has typical contact type of crimp. Furthermore, bayonet lock is the Fastening Type of the product. It has a long 14 weeks standard lead time. While it is also supplied with highly stable polyetherimide (pei) insert material. The product has a keyed orientation. It is IP rated with ip68 - dust tight, waterproof. The splendid features of the product include dust cap, ring adapter. The product is available in panel mount configuration. The product hdp20, is a highly preferred choice for users. Moreover, it corresponds to hdp24, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Molding process chg 13/SEP/2022(PCN Assembly/Origin)
pdf icon
Material chg 17/AUG/2022(PCN Design/Specification)
pdf icon
Mult Devs - material chg 01/JUL/2021(PCN Design/Specification)
pdf icon
Multiple Devices Packaging 22/Aug/2019(PCN Packaging)
