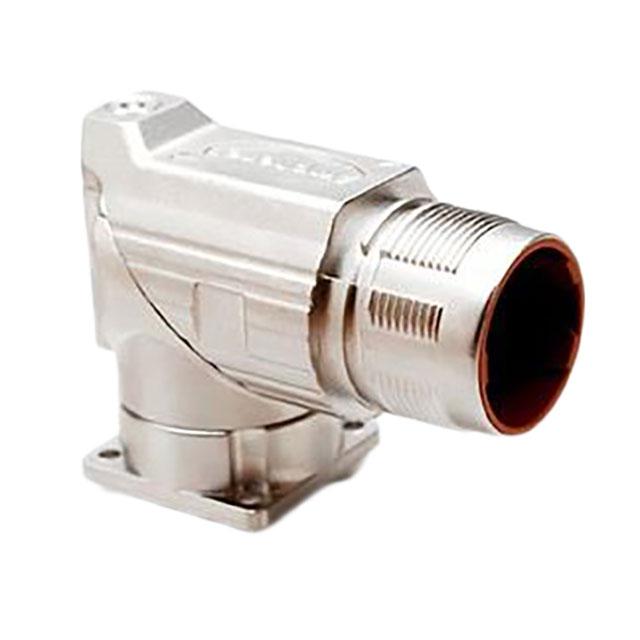

Amphenol Sine Systems Corp MB5RJN0801

MB5RJN0801 Amphenol Sine Systems Corp
Amphenol Sine Systems Corp

Product Information

HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Flange
Note:
Contacts Not Included
Operating Temperature:
-20°C ~ 130°C
Shell Size, MIL:
-
Type:
For Male Pins
Number of Positions:
8 (4 + 3 Power + PE)
Shielding:
Shielded
Shell Material:
Zinc Die Cast
REACH Status:
REACH Unaffected
Includes:
-
Housing Color:
Silver
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Contact Size:
1.0mm (4), 2.0mm Power (4)
Package:
Bulk
Shell Size - Insert:
M23-8
Connector Type:
Receptacle Housing
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Crimp
Fastening Type:
Push-Twist
standardLeadTime:
16 Weeks
Insert Material:
Polyamide (PA66), Nylon 6/6
Orientation:
Keyed
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Backshell, Rotatable
Mounting Type:
Panel Mount, Right Angle
Shell Finish:
Nickel
Series:
MotionGrade™ M23 Power Standard Series, Checkmate™ Quick Locking
Base Product Number:
MB5RJN
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Sine Systems Corp. The manufacturer part number is MB5RJN0801. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. The product's mounting feature includes flange. Note: contacts not included. The product has -20°c ~ 130°c operating temperature range. It comes in for male pins configuration. The product carries possible position value of 8 (4 + 3 power + pe). Furthermore, the product is shielded with shielded. It is made from highly reliable zinc die cast materials. In addition, it is reach unaffected. It has an integral silver housing colour. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. While it has a 1.0mm (4), 2.0mm power (4) of contact size. It is shipped in bulk package . The insert's size is m23-8. receptacle housing Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of crimp. Furthermore, push-twist is the Fastening Type of the product. It has a long 16 weeks standard lead time. While it is also supplied with highly stable polyamide (pa66), nylon 6/6 insert material. The product has a keyed orientation. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include backshell, rotatable. The product is available in panel mount, right angle configuration. The shell is an excellent finishing of nickel. The product motiongrade™ m23 power standard series, checkmate™ quick locking, is a highly preferred choice for users. Moreover, it corresponds to mb5rjn, a base product number of the product. The product is designated with the ear99 code number.
