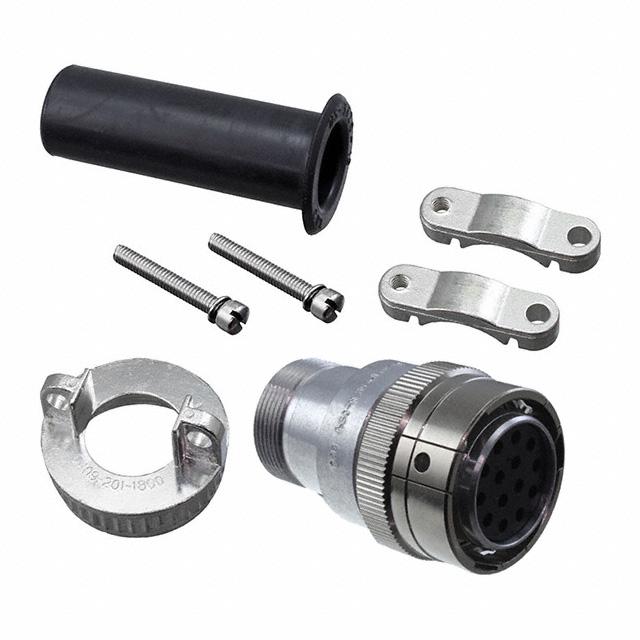

TE Connectivity Deutsch Connectors HDB36-18-14SN-059

HDB36-18-14SN-059 TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors

Product Information

HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Note:
Contacts Not Included
Operating Temperature:
-55°C ~ 125°C
Shell Size, MIL:
-
Type:
For Female Sockets
Number of Positions:
14
Shielding:
Unshielded
Shell Material:
Aluminum
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
HDB36-18-14SN-059 Models
Housing Color:
Silver
Material Flammability Rating:
-
edacadModelUrl:
/en/models/7220071
Contact Shape:
Circular
Contact Size:
16
Package:
Bulk
Shell Size - Insert:
18-14
Connector Type:
Plug Housing
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Crimp
Fastening Type:
Bayonet Lock
standardLeadTime:
10 Weeks
Insert Material:
Polyetherimide (PEI)
Orientation:
Keyed
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Backshell, Cable Clamp
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Series:
HD30
Base Product Number:
HDB36
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Deutsch Connectors. The manufacturer part number is HDB36-18-14SN-059. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. Note: contacts not included. The product has -55°c ~ 125°c operating temperature range. It comes in for female sockets configuration. The product carries possible position value of 14. Furthermore, the product is shielded with unshielded. It is made from highly reliable aluminum materials. In addition, it is reach unaffected. It has an integral silver housing colour. It has a typical circular shape. While it has a 16 of contact size. It is shipped in bulk package . The insert's size is 18-14. plug housing Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. It has typical contact type of crimp. Furthermore, bayonet lock is the Fastening Type of the product. It has a long 10 weeks standard lead time. While it is also supplied with highly stable polyetherimide (pei) insert material. The product has a keyed orientation. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include backshell, cable clamp. The product is available in free hanging (in-line) configuration. The product hd30, is a highly preferred choice for users. Moreover, it corresponds to hdb36, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Molding process chg 13/SEP/2022(PCN Assembly/Origin)
pdf icon
Mult Devs Mult Changes 19/Jul/2021(PCN Design/Specification)
pdf icon
HD30 Series Spec Sheet(Datasheets)
pdf icon
HDB36-xx-xxP(Sx)-059 Drawing(Product Drawings)
