Bulgin PXP4011/06S/6065

PXP4011-06S-6065 Bulgin PXP4011/06S/6065
PXP4011/06S/6065
PXP4011/06S/6065
Bulgin

Product Information

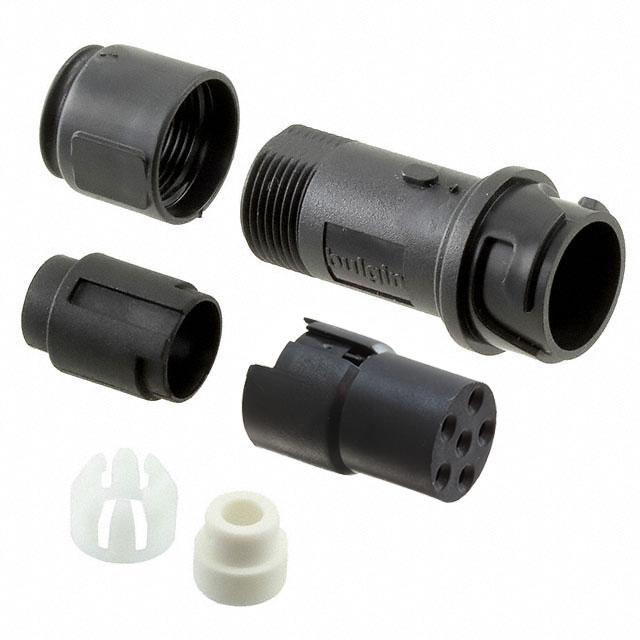

The PXP4011/06S/6065 from Bulgin is a robust and durable circular connector enclosure engineered for high-performance applications with its specialized ingress protection rating. This enclosure boasts superior material quality and precision design, offering a reliable solution for connectivity needs in harsh environmental conditions.

Current Rating:
5.0 A, 8.0A
Pole Format:
6P
Housing Material:
Polymer
Shell Size:
20
Voltage Rating:
600.0 V
Plug/Socket:
Socket
Contact Plating:
Gold
Termination Method:
Crimp, Solder
Shielded/Unshielded:
Unshielded
Strain Relief:
No
Maximum Operating Temperature:
+120°C
IP Rating:
IP66, IP68, IP69K
Body Orientation:
Straight
Contact Gender:
Female
Connector Size:
Miniature
Mating Type:
Quick Connect
Mounting Type:
Cable Mount
Series:
Buccaneer 4000
Minimum Operating Temperature:
-40°C
Number of Contacts:
6
Contact Material:
Copper
HTSUS:
8538.90.6000
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Note:
Contacts Not Included
Operating Temperature:
-40°C ~ 120°C
Shell Size, MIL:
-
Type:
For Female Sockets
Number of Positions:
6 (Power)
Shielding:
Unshielded
Shell Material:
Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
PXP4011/06S/6065 Models
Primary Material:
Plastic
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/8635761
Contact Shape:
Circular
Manufacturer:
Bulgin
Contact Size:
-
Shell Size - Insert:
-
Connector Type:
Receptacle Housing
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Crimp and Solder Cup
Fastening Type:
Bayonet Lock
standardLeadTime:
22 Weeks
Insert Material:
-
Orientation:
Keyed
Ingress Protection:
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
Backshell, UV Resistant
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Series:
Buccaneer® 4000
Packaging:
Bulk
Base Product Number:
PXP4011
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The PXP4011/06S/6065 from Bulgin is a series of high-performance circular connectors designed to provide a reliable and secure connection in harsh environmental conditions. These connectors are widely used in various industries, including aerospace, automotive, marine, and defence. With their IP68 and IP69K rating, high current rating, and easy installation, these connectors are ideal for use in a range of applications across different industries.

Potential Uses of Bulgin PXP4011/06S/6065:

The Bulgin PXP4011/06S/6065 series of connectors are used in various applications across different industries. Some of the critical applications of these connectors include:

  • Aerospace: The connectors are used in aerospace applications to provide a secure and reliable connection in harsh environmental conditions.
  • Automotive: The connectors are used in automotive applications, including electric vehicles, to provide a high-power, reliable connection.
  • Marine: The connectors are used in marine applications, including boats and yachts, to provide a waterproof and dustproof connection.
  • Defence: The connectors are used in defence applications, including military vehicles and equipment, to provide a reliable and secure connection in harsh environments.

Key Features and Benefits of Bulgin PXP4011/06S/6065

The Bulgin PXP4011/06S/6065 series of connectors are designed with a range of features that make them ideal for use in harsh environmental conditions. These features include:

  • IP68 and IP69K rated: The connectors are designed to withstand high dust, dirt, and water ingress, making them perfect for harsh outdoor environments.
  • RoHS and REACH compliant: The connectors are manufactured in compliance with the RoHS and REACH regulations, ensuring that they are environmentally friendly.
  • High current rating: The connectors can handle a high current rating of up to 16A, making them suitable for use in high-power applications.
  • Easy installation: The connectors are designed for easy installation, with a simple push-pull locking mechanism that ensures a secure and reliable connection.

Physical Specifications of Bulgin PXP4011/06S/6065:

The Bulgin PXP4011/06S/6065 series of connectors are provided in multiple specifications to suit different applications. Some of the critical specifications of the connectors include:

  • Number of contacts: The connectors are available with 6, 10, 16, or 24 connections, allowing for a wide range of connectivity options.
  • Voltage rating: The connectors have a maximum voltage rating of 250V AC/DC, making them suitable for use in a range of applications.
  • Temperature range: The connectors can operate within a temperature range of -40°C to +125°C, making them suitable for use in extreme temperatures.
  • Contact resistance: The connectors have a contact resistance of less than 5mΩ, ensuring a reliable and secure connection.
