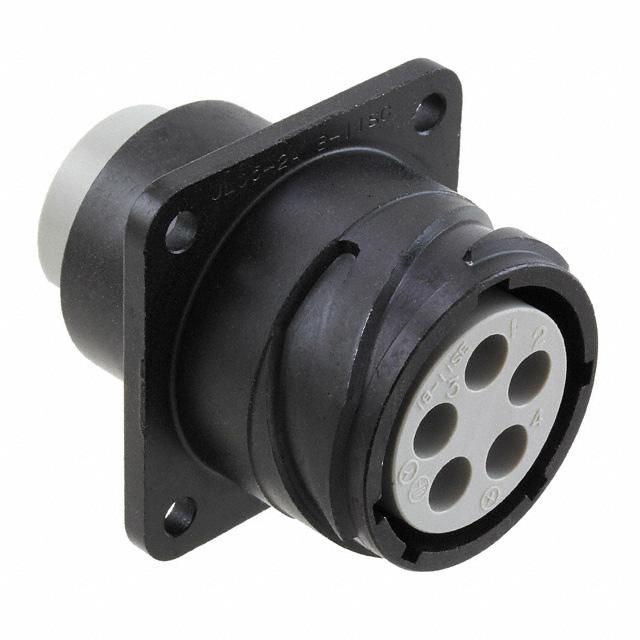

JAE Electronics JL05-2A18-11SC-F0-R

JL05-2A18-11SC-F0-R JAE Electronics
JAE Electronics

Product Information

HTSUS:
8538.90.8180
Shell Material:
Aluminum
Mounting Feature:
Flange
Note:
Contacts Not Included
Operating Temperature:
-55°C ~ 125°C
Shell Size, MIL:
-
Type:
For Female Sockets
Number of Positions:
5 (4 + PE)
Shielding:
Unshielded
Includes:
-
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Manufacturer:
JAE Electronics
Contact Size:
12
Shell Size - Insert:
18-11
Connector Type:
Receptacle Housing
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Crimp
Fastening Type:
Bayonet Lock
Insert Material:
Synthetic Resin
Orientation:
N (Normal)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Shell Finish:
Zinc
Series:
JL05
Packaging:
Bulk
Base Product Number:
JL05-2A1
ECCN:
EAR99
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is JL05-2A18-11SC-F0-R. It is assigned with possible HTSUS value of 8538.90.8180. It is made from highly reliable aluminum materials. The product's mounting feature includes flange. Note: contacts not included. The product has -55°c ~ 125°c operating temperature range. It comes in for female sockets configuration. The product carries possible position value of 5 (4 + pe). Furthermore, the product is shielded with unshielded. It has an integral black housing colour. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. The jae electronics's product offers user-desired applications. While it has a 12 of contact size. The insert's size is 18-11. receptacle housing Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of crimp. Furthermore, bayonet lock is the Fastening Type of the product. While it is also supplied with highly stable synthetic resin insert material. The product has a n (normal) orientation. It is IP rated with ip67 - dust tight, waterproof. The product is available in panel mount configuration. The shell is an excellent finishing of zinc. The product jl05, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to jl05-2a1, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices 30/Jan/2018(PCN Obsolescence/ EOL)
pdf icon
JL05 Series(Datasheets)
pdf icon
Circular Connectors(Datasheets)
pdf icon
Mult Device Part Status Chg 26/Jul/2017(PCN Part Status Change)
