Bulgin PX0410/10P/6065

PX0410-10P-6065 Bulgin PX0410/10P/6065
PX0410/10P/6065
PX0410/10P/6065
ET12269593
Bulgin

Product Information

Number of Contacts:
10
Current Rating:
1.0A
Mating Type:
Threaded
Mounting Type:
Cable Mount
IP Rating:
IP68
Series:
Buccaneer 400
Body Orientation:
Straight
Voltage Rating:
50.0 V
Contact Gender:
Male
Termination Method:
Crimp, Solder
Housing Material:
Polymer
Plug/Socket:
Plug
Connector Size:
Miniature
Contact Plating:
Gold
Shell Size:
19
Strain Relief:
Yes
Maximum Operating Temperature:
+80°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper
HTSUS:
8538.90.6000
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Note:
Contacts Not Included
Operating Temperature:
-40°C ~ 80°C
Shell Size, MIL:
-
Type:
For Male Pins
Number of Positions:
10 (Power)
Shielding:
Unshielded
title:
PX0410/10P/6065
Shell Material:
Polyamide (PA), Nylon
REACH Status:
REACH Unaffected
Includes:

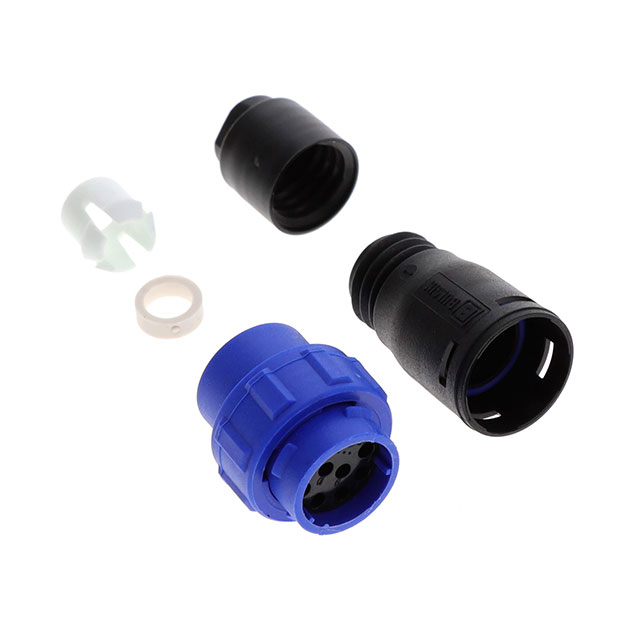

6 pcs - 1 Connector, 1 Backshell, 1 Cage Clamp, 1 Clamp Nut, 1 Gland, 1 O-Ring
edacadModel:
PX0410/10P/6065 Models
Primary Material:
Plastic
Housing Color:
Black, Blue
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1625800
Contact Shape:
Circular
Manufacturer:
Bulgin
Contact Size:
-
Shell Size - Insert:
-
Connector Type:
Plug Housing
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Crimp and Solder Cup
Fastening Type:
Threaded
standardLeadTime:
22 Weeks
Insert Material:
-
Orientation:
Keyed
Ingress Protection:
IP68 - Dust Tight, Waterproof
Features:
Backshell, Coupling Nut, UV Resistant
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Series:
Buccaneer® 400
Packaging:
Bulk
Base Product Number:
PX0410
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Bulgin. The manufacturer part number is PX0410/10P/6065. The product contains 10 contacts. The product has a current rating of 1.0a. It is a type of threaded mating. The product is available in cable mount configuration. It is IP rated with ip68. The product buccaneer 400, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 50.0 v voltage rating. This male contact is widely suited for specific applications. It allows crimp, solder termination method. The product also features robust polymer housing material. It comprises a plug. The connector has miniature size. The high-quality gold is used as contact plating material. The shell has 19 size. It has a strain relief characteristic yes . It has a maximum operating temperature of +80°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper materials. It is assigned with possible HTSUS value of 8538.90.6000. The product is rohs3 compliant. Note: contacts not included. The product has -40°c ~ 80°c operating temperature range. It comes in for male pins configuration. The product carries possible position value of 10 (power). Furthermore, the product is shielded with unshielded. It is made from highly reliable polyamide (pa), nylon materials. In addition, it is reach unaffected. The product is also supplied with 6 pcs - 1 connector, 1 backshell, 1 cage clamp, 1 clamp nut, 1 gland, 1 o-ring. The basic product material is plastic. It has an integral black, blue housing colour. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. The bulgin's product offers user-desired applications. plug housing Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. It has typical contact type of crimp and solder cup. Furthermore, threaded is the Fastening Type of the product. It has a long 22 weeks standard lead time. The product has a keyed orientation. It is IP rated with ip68 - dust tight, waterproof. The splendid features of the product include backshell, coupling nut, uv resistant. The product is available in free hanging (in-line) configuration. The product buccaneer® 400, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to px0410, a base product number of the product. The product is designated with the ear99 code number.
