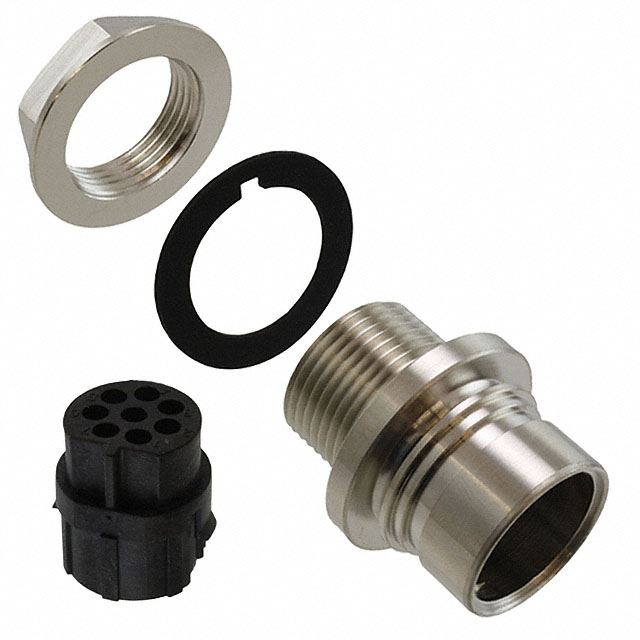

Bulgin PXM6012/08P/CR

PXM6012-08P-CR Bulgin PXM6012/08P/CR
PXM6012/08P/CR
Bulgin

Product Information

Number of Contacts:
8
Current Rating:
10.0A
Mating Type:
Push-Pull
Mounting Type:
Front Mount
IP Rating:
IP66, IP68, IP69K
Series:
Buccaneer 6000
Body Orientation:
Straight
Voltage Rating:
277.0 V
Contact Gender:
Male
Termination Method:
Crimp, Solder
Housing Material:
Nickel
Plug/Socket:
Plug
Contact Plating:
Nickel
Shell Size:
32
Shielded/Unshielded:
Unshielded
Strain Relief:
No
Maximum Operating Temperature:
+120°C
Minimum Operating Temperature:
-40°C
Contact Material:
Brass
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Rear Side Nut
Note:
Contacts Not Included
Operating Temperature:
-40°C ~ 120°C
Shell Size, MIL:
-
Type:
For Male Pins
Number of Positions:
8 (Power)
Shielding:
Unshielded
title:
PXM6012/08P/CR
Shell Material:
Brass
REACH Status:
REACH Unaffected
Includes:
3 pcs - 1 Connector, 1 Nut, 1 Washer
edacadModel:
PXM6012/08P/CR Models
Primary Material:
Metal
Housing Color:
Silver
Material Flammability Rating:
-
edacadModelUrl:
/en/models/3687698
Contact Shape:
Circular
Manufacturer:
Bulgin
Contact Size:
-
Shell Size - Insert:
-
Connector Type:
Receptacle Housing
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Crimp and Solder Cup
Fastening Type:
Push-Twist
standardLeadTime:
22 Weeks
Insert Material:
-
Orientation:
Keyed
Ingress Protection:
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
-
Mounting Type:
Panel Mount
Shell Finish:
Nickel
Series:
Buccaneer® 6000
Packaging:
Bulk
Base Product Number:
PXM6012
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Bulgin. The manufacturer part number is PXM6012/08P/CR. The product contains 8 contacts. The product has a current rating of 10.0a. It is a type of push-pull mating. The product is available in front mount configuration. It is IP rated with ip66, ip68, ip69k. The product buccaneer 6000, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 277.0 v voltage rating. This male contact is widely suited for specific applications. It allows crimp, solder termination method. The product also features robust nickel housing material. It comprises a plug. The high-quality nickel is used as contact plating material. The shell has 32 size. Moreover, the product is unshielded . It has a strain relief characteristic no . It has a maximum operating temperature of +120°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. The product's mounting feature includes bulkhead - rear side nut. Note: contacts not included. The product has -40°c ~ 120°c operating temperature range. It comes in for male pins configuration. The product carries possible position value of 8 (power). Furthermore, the product is shielded with unshielded. It is made from highly reliable brass materials. In addition, it is reach unaffected. The product is also supplied with 3 pcs - 1 connector, 1 nut, 1 washer. The basic product material is metal. It has an integral silver housing colour. It has a typical circular shape. The bulgin's product offers user-desired applications. receptacle housing Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. It has typical contact type of crimp and solder cup. Furthermore, push-twist is the Fastening Type of the product. It has a long 22 weeks standard lead time. The product has a keyed orientation. It is IP rated with ip66/ip68/ip69k - dust tight, water resistant, waterproof. The product is available in panel mount configuration. The shell is an excellent finishing of nickel. The product buccaneer® 6000, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to pxm6012, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
6000 Series Power Connectors Product Datasheet(Technical Reference)
pdf icon
Series6000_Power-Metal data sheet.pdf(Technical Reference)
pdf icon
Bulgin REACH(Environmental Information)
pdf icon
Bulgin RoHS Cert(Environmental Information)
pdf icon
6000 Series Metal Wiring Instr(Datasheets)
pdf icon
6000 Series CE Cert(Other Related Documents)
pdf icon
6000 Series - Ethernet Buccaneer(Other Related Documents)
