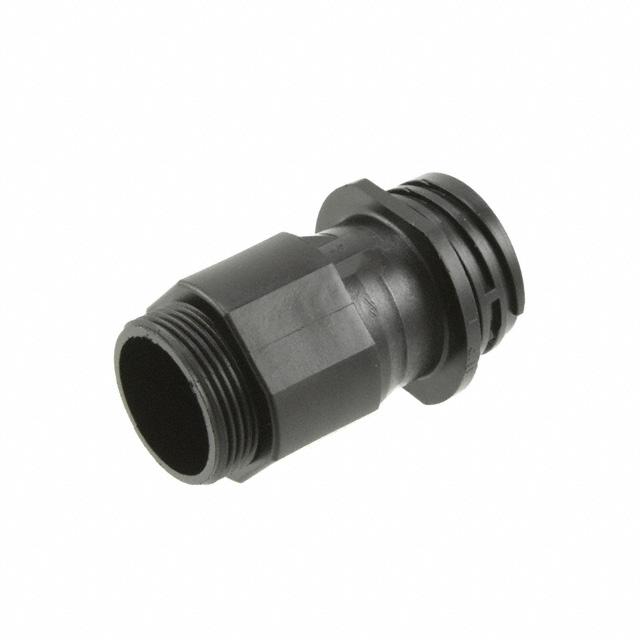

TE Connectivity AMP Connectors 796276-1

796276-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8538.90.6000
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Note:
Contacts Not Included
Operating Temperature:
-55°C ~ 105°C
Shell Size, MIL:
-
Type:
For Male Pins
Number of Positions:
16
Shielding:
Unshielded
Shell Material:
Polyamide (PA), Nylon
Includes:
-
edacadModel:
796276-1 Models
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2258941
Contact Shape:
Circular
Contact Size:
16
Package:
Bulk
Shell Size - Insert:
17-16
Connector Type:
Receptacle Housing
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Crimp
Fastening Type:
Threaded
standardLeadTime:
39 Weeks
Insert Material:
-
Orientation:
Keyed
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Backshell
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Series:
CPC Series 1
Base Product Number:
796276
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 796276-1. It is assigned with possible HTSUS value of 8538.90.6000. The product is rohs3 compliant. Note: contacts not included. The product has -55°c ~ 105°c operating temperature range. It comes in for male pins configuration. The product carries possible position value of 16. Furthermore, the product is shielded with unshielded. It is made from highly reliable polyamide (pa), nylon materials. It has an integral black housing colour. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. While it has a 16 of contact size. It is shipped in bulk package . The insert's size is 17-16. receptacle housing Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of crimp. Furthermore, threaded is the Fastening Type of the product. It has a long 39 weeks standard lead time. The product has a keyed orientation. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include backshell. The product is available in free hanging (in-line) configuration. The product cpc series 1, is a highly preferred choice for users. Moreover, it corresponds to 796276, a base product number of the product. The product is designated with the ear99 code number.
