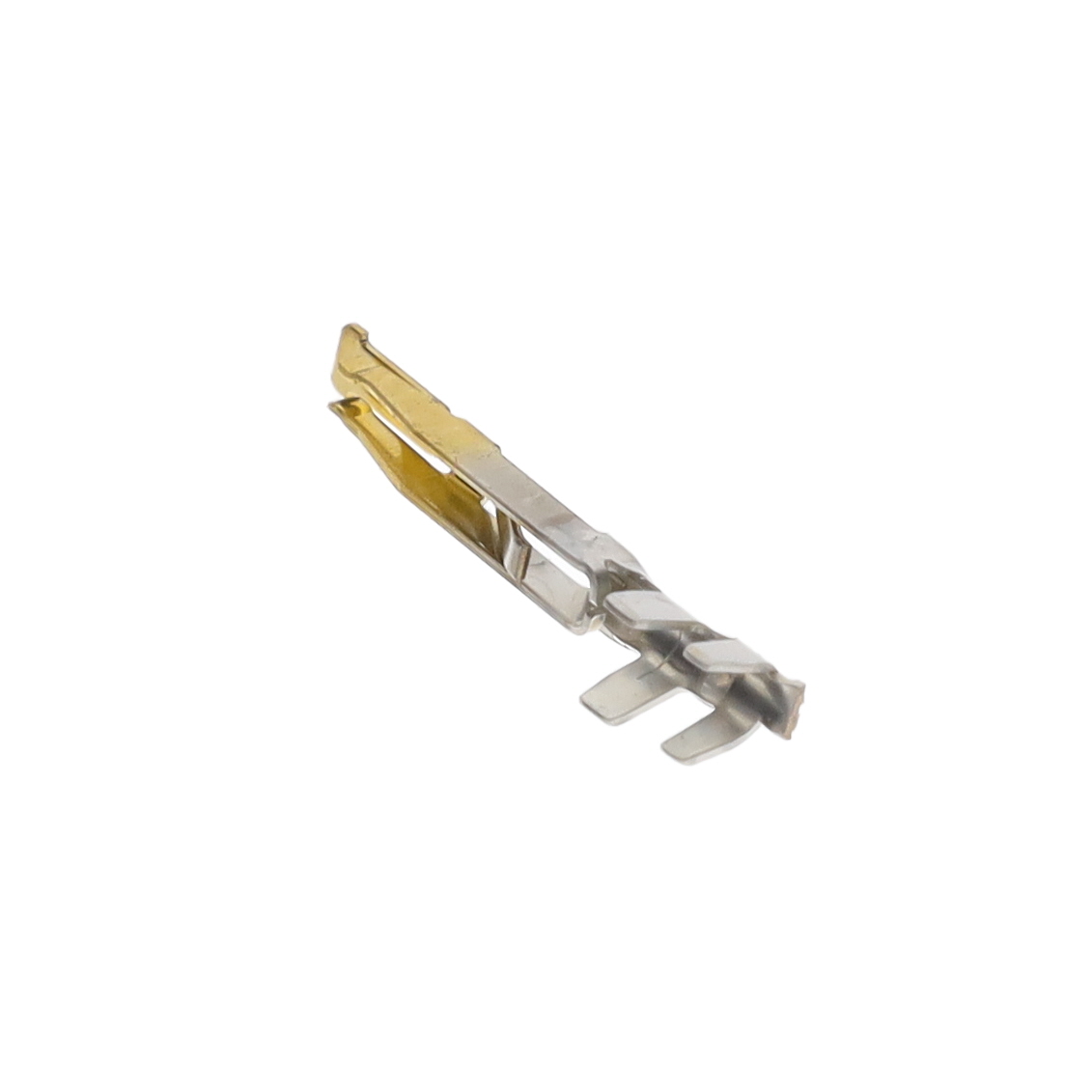

JAE Electronics JN1-22-20S-R-10000

JN1-22-20S-R-10000 JAE Electronics
JAE Electronics

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Contact Finish Thickness:
3.94µin (0.10µm)
Type:
Signal, Stamped
Wire Gauge or Range - mm²:
-
REACH Status:
REACH Unaffected
Manufacturer:
JAE Electronics
Contact Size:
22
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Socket
Wire Gauge or Range - AWG:
20-21 AWG
standardLeadTime:
15 Weeks
Wire Gauge or Range - Coaxial:
-
Termination Finish:
Nickel
Features:
Insulation Support
Series:
JN1
Packaging:
Tape & Reel (TR)
ECCN:
EAR99
Contact Termination:
Crimp
Base Product Number:
JN1-22-2
Contact Material:
Copper Alloy
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is JN1-22-20S-R-10000. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. It has 3.94µin (0.10µm) of contact finishing thickness. It comes in signal, stamped configuration. In addition, it is reach unaffected. The jae electronics's product offers user-desired applications. While it has a 22 of contact size. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of socket. While 20-21 awg is its range or wire gauge. It has a long 15 weeks standard lead time. Terminals are robustly finished with a nickel. The splendid features of the product include insulation support. The product jn1, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product is designated with the ear99 code number. It also incorporates crimp contact terminals. Moreover, it corresponds to jn1-22-2, a base product number of the product. The product is made from sturdy copper alloy materials.

pdf icon
JN1,JN2 Series Datasheet(Datasheets)
pdf icon
Mult Dev RETRACTION 28/Apr/2015(PCN Part Status Change)
