HTSUS:
8536.69.4020
RoHS Status:
RoHS non-compliant
Mounting Feature:
-
Operating Temperature:
-55°C ~ 125°C
Shell Size, MIL:
-
Number of Positions:
3
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Aluminum, Olive Drab Cadmium
Shielding:
Unshielded
Cable Opening:
0.796" (20.22mm)
title:

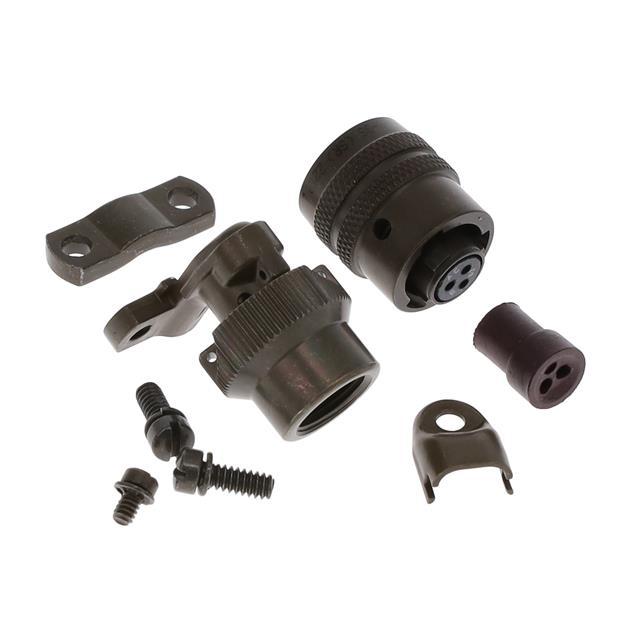

PT08E8-3S-SR
Shell Material:
Aluminum
Current Rating (Amps):
-
Applications:
Aerospace, Industrial, Instrumentation, Mass Transit, Military
Primary Material:
Metal
Material Flammability Rating:
-
Voltage Rating:
600VAC
Shell Size - Insert:
8-3
Connector Type:
Plug, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Bayonet Lock
Qualification:
MIL-DTL-26482 Series I
Termination:
Solder Cup
standardLeadTime:
16 Weeks
Insert Material:
Neoprene
Orientation:
N (Normal)
Ingress Protection:
Environment Resistant
Features:
Backshell, Cable Clamp, Coupling Nut, Strain Relief
Mounting Type:
Free Hanging (In-Line), Right Angle
Shell Finish:
Olive Drab Chromate over Cadmium
Color:
Olive Drab
Series:
PT
Packaging:
Bag
Grade:
-
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Alloy
Base Product Number:
PT08E
ECCN:
EAR99
