HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Operating Temperature:
-40°C ~ 120°C
Shell Size, MIL:
-
Number of Positions:
2
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Brass, Chrome over Nickel
Shielding:
Shielded
Cable Opening:
0.157" ~ 0.205" (4.00mm ~ 5.20mm)
Shell Material:
Brass
REACH Status:
REACH Unaffected
Current Rating (Amps):
-
Applications:
Industrial, Medical, Military, Testing Equipment & Measurement
Primary Material:
Metal
Material Flammability Rating:
-
Voltage Rating:
-
Shell Size - Insert:
0

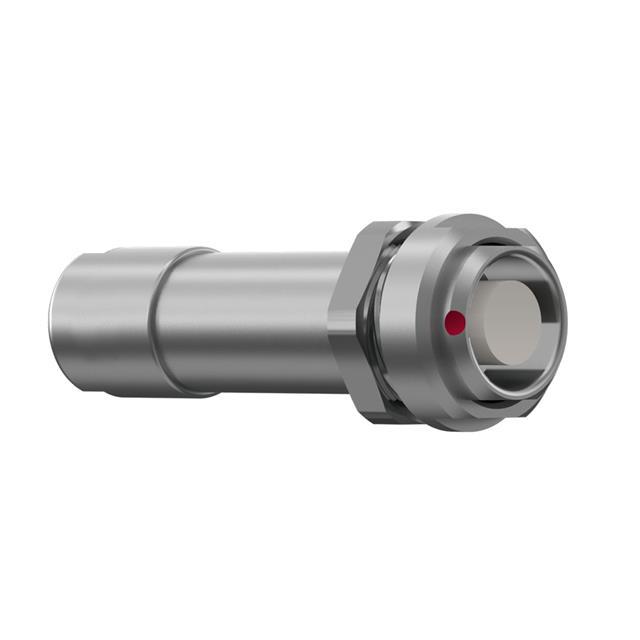

Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
Push-Pull, Detent Lock
Termination:
Solder Cup
standardLeadTime:
24 Weeks
Insert Material:
-
Orientation:
0
Ingress Protection:
IP50 - Dust Protected
Features:
Backshell
Mounting Type:
Free Hanging (In-Line); Panel Mount
Shell Finish:
Chrome over Nickel
Color:
Silver
Series:
ODU MINI-SNAP® SPE
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Brass
ECCN:
EAR99
