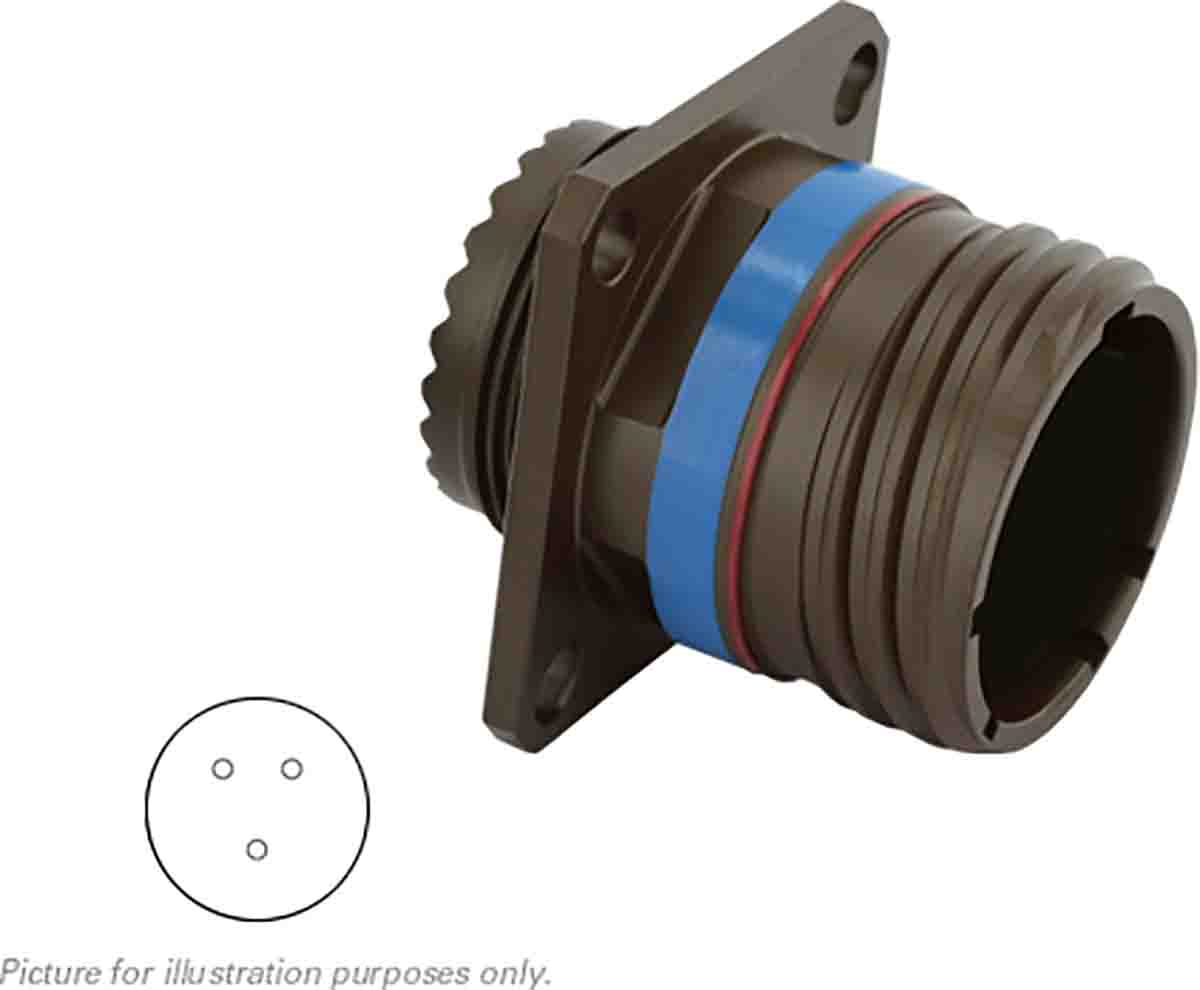

Souriau, 8D 3 Way Panel Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 09, Screw Coupling,

Souriau Sunbank by Eaton

Product Information

Series:
8D
Current Rating:
7.5A
Mating Type:
Screw Coupling
Mounting Type:
Panel Mount
IP Rating:
IP67
Gender:
Female
Body Orientation:
Straight
Termination Method:
Crimp
Contact Gender:
Male
Military Standard:
MIL-DTL-38999
Housing Material:
Aluminium
Connector Size:
Standard
Contact Plating:
Gold over Nickel
Shell Size:
09
Number of Contacts:
3
Maximum Operating Temperature:
+175°C
Minimum Operating Temperature:
-65°C
Shell Plating:
Cadmium
Contact Material:
Copper Alloy
HTSUS:
8536.69.4020
RoHS Status:
RoHS non-compliant
Voltage Rating:
-
Mounting Feature:
Flange
Operating Temperature:
-65°C ~ 175°C
Shell Size, MIL:
-
Number of Positions:
3
Backshell Material, Plating:
-
Shielding:
Unshielded
Cable Opening:
-
Shell Material:
Aluminum
REACH Status:
REACH Unaffected
Current Rating (Amps):
7.5A
edacadModel:
8D009W98PN Models
Applications:
Aviation, Marine, Military
Contact Finish - Mating:
Gold
Primary Material:
Metal
Material Flammability Rating:
-
edacadModelUrl:
/en/models/8828827
Package:
Bulk
Shell Size - Insert:
9-98
Connector Type:
Receptacle, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Termination:
Crimp
Insert Material:
Thermoplastic
Orientation:
N (Normal)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Shell Finish:
Olive Drab Cadmium
Color:
Olive Drab
Series:
MIL-DTL-38999 Series III, 8D
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Alloy
Base Product Number:
8D009W
ECCN:
EAR99
Checking for live stock

This is Souriau 8D 3 Way Panel Mount MIL Spec Circular Connector Receptacle Pin ContactsShell Size 09 Screw Coupling manufactured by Souriau Sunbank by Eaton. The manufacturer part number is 8D009W98PN. The product 8d, is a highly preferred choice for users. The product has a current rating of 7.5a. It is a type of screw coupling mating. The product is available in panel mount configuration. It is IP rated with ip67. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows crimp termination method. This male contact is widely suited for specific applications. It complies with mil-dtl-38999 military standard. The product also features robust aluminium housing material. The connector has standard size. The high-quality gold over nickel is used as contact plating material. The shell has 09 size. The product contains 3 contacts. It has a maximum operating temperature of +175°c. Whereas, the minimum operating temperature of the product is -65°c. The shell is plated with high stable cadmium material. The product is made from sturdy copper alloy materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs non-compliant. The product's mounting feature includes flange. The product has -65°c ~ 175°c operating temperature range. The product carries possible position value of 3. Furthermore, the product is shielded with unshielded. It is made from highly reliable aluminum materials. In addition, it is reach unaffected. Additionally, the product's output is 7.5a. The product is widely employed in aviation, marine, military. It has nice contact finishing of gold. The basic product material is metal. It is shipped in bulk package . The insert's size is 9-98. receptacle, male pins Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, threaded is the Fastening Type of the product. The product features crimp termination style. While it is also supplied with highly stable thermoplastic insert material. The product has a n (normal) orientation. It is IP rated with ip67 - dust tight, waterproof. The shell is an excellent finishing of olive drab cadmium. It has a classic olive drab colour. The product mil-dtl-38999 series iii, 8d, is a highly preferred choice for users. Moreover, it corresponds to 8d009w, a base product number of the product. The product is designated with the ear99 code number.
