Series:
62GB
Mating Type:
Bayonet Coupling
Mounting Type:
Cable Mount
Voltage Rating:
500 V ac, 700 V dc
Number of Contacts:
12
Gender:
Male
Colour:
Olive
Termination Method:
Solder
Contact Gender:
Male
Minimum Operating Temperature:
-55°C
Shell Plating:
Zinc Cobalt
Contact Plating:
Gold
Shell Size:
14
Strain Relief:
Yes
Maximum Operating Temperature:
+125°C
Body Orientation:
Straight
Military Standard:
MIL-DTL-26482
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-55°C ~ 125°C
Shell Size, MIL:
-
Number of Positions:
12
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Aluminum, Olive Drab Zinc Cobalt
Shielding:
Unshielded
Cable Opening:
0.375" (9.52mm)
title:

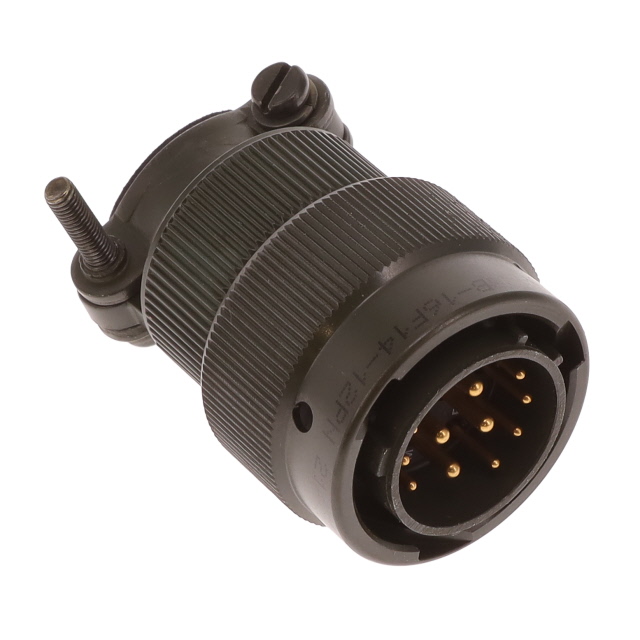

62GB-16F14-12PN
Shell Material:
Aluminum
Current Rating (Amps):
7.5A, 13A
Applications:
Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Primary Material:
Metal
Material Flammability Rating:
-
Voltage Rating:
-
Shell Size - Insert:
14-12
Connector Type:
Plug, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Bayonet Lock
Termination:
Solder Cup
standardLeadTime:
24 Weeks
Insert Material:
Polychloroprene
Orientation:
N (Normal)
Ingress Protection:
Environment Sealed
Features:
Backshell, Cable Clamp, Coupling Nut, Strain Relief
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Zinc Cobalt
Color:
Olive Drab
Series:
62GB
Packaging:
Bulk
Contact Finish Thickness - Mating:
50.0µin (1.27µm)
Contact Material:
Copper Alloy
Base Product Number:
62GB16
ECCN:
EAR99
