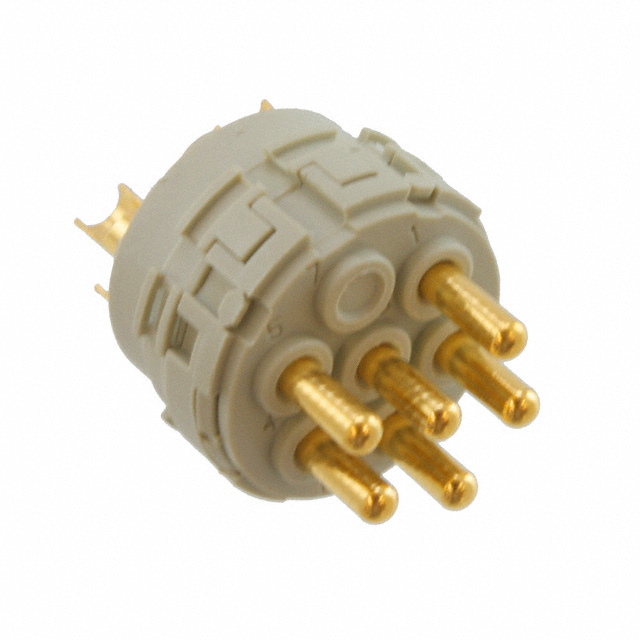

HARTING 09152062603

09152062603 HARTING
HARTING

Product Information

HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-40°C ~ 115°C
Shell Size, MIL:
-
Number of Positions:
6 (Power)
Contact Finish - Mating:
Gold
Backshell Material, Plating:
-
Shielding:
Unshielded
Cable Opening:
-
title:
09152062603
Shell Material:
-
REACH Status:
REACH Unaffected
Current Rating (Amps):
15A
Applications:
-
Primary Material:
-
Material Flammability Rating:
UL94 V-0
Voltage Rating:
-
Shell Size - Insert:
-
Connector Type:
Insert, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
-
Termination:
Solder Cup
Insert Material:
Polybutylene Terephthalate (PBT)
Orientation:
-
Ingress Protection:
-
Features:
Insert Only, Requires Shell
Mounting Type:
-
Shell Finish:
-
Color:
-
Series:
Han® R23
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Alloy
ECCN:
EAR99
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09152062603. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. The product has -40°c ~ 115°c operating temperature range. The product carries possible position value of 6 (power). It has nice contact finishing of gold. Furthermore, the product is shielded with unshielded. In addition, it is reach unaffected. Additionally, the product's output is 15a. It carries ul94 v-0 of material flammability rating. insert, male pins Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder cup termination style. While it is also supplied with highly stable polybutylene terephthalate (pbt) insert material. The splendid features of the product include insert only, requires shell. The product han® r23, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.

pdf icon
Han R23 21/Dec/2016(PCN Obsolescence/ EOL)
pdf icon
09152062603 Drawing(Product Drawings)
