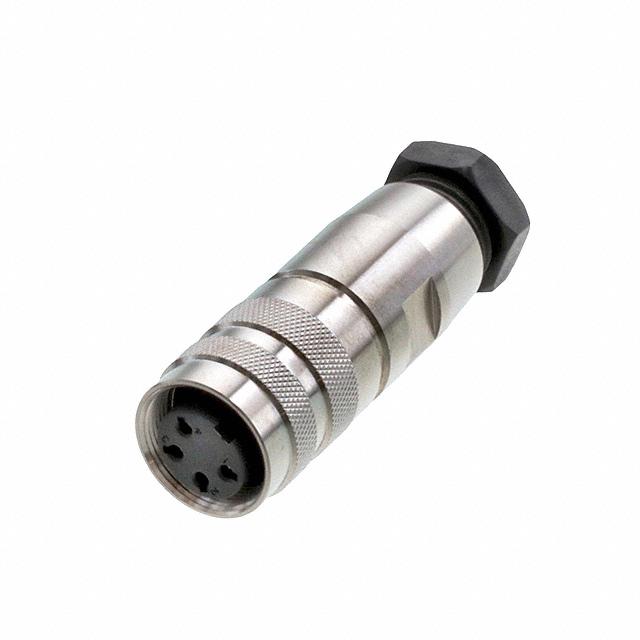

Bulgin PXMBNI16FBF04ASCPG9

PXMBNI16FBF04ASCPG9 Bulgin
PXMBNI16FBF04ASCPG9
PXMBNI16FBF04ASCPG9
Bulgin

Product Information

The Bulgin PXMBNI16FBF04ASCPG9 is a rugged and reliable circular connector assembly designed to withstand harsh environments and provide secure and stable connections. The connector boasts a compact and durable design with a waterproof and shock-resistant casing, an excellent solution for demanding industrial and outdoor applications.

Current Rating:
7.0A
Mating Type:
Threaded
Pole Format:
4
IP Rating:
IP67
Series:
Buccaneer M16
Body Orientation:
Straight
Voltage Rating:
250 V
Coding:
A
Contact Gender:
Female
Housing Material:
Brass
Plug/Socket:
Plug
Connector Size:
M16
Contact Plating:
Gold
Termination Method:
Solder
Mounting Type:
Panel Mount
Number of Contacts:
4
Maximum Operating Temperature:
+80°C
Minimum Operating Temperature:
-25°C
Contact Material:
Bronze
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-25°C ~ 80°C
Shell Size, MIL:
-
Number of Positions:
4
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Brass, Nickel
Shielding:
Shielded
Cable Opening:
0.197" ~ 0.295" (5.00mm ~ 7.50mm)
Shell Material:
Brass
REACH Status:
REACH Unaffected
Current Rating (Amps):
7A
Applications:
Industrial, Instrumentation, Medical
Primary Material:
Metal
Material Flammability Rating:
-
Voltage Rating:
250V
Shell Size - Insert:
M16-4
Connector Type:
Plug, Female Sockets
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
Threaded
Termination:
Solder Cup
Insert Material:
-
Orientation:
A
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Backshell, Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Silver
Series:
Buccaneer® M16
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Phosphor Bronze
Base Product Number:
PXMBNI
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The Bulgin PXMBNI16FBF04ASCPG9 is a rugged, high-performance connector designed for harsh environments. It is a circular connector made of high-quality materials, making it resistant to damage from shock, vibration, and extreme temperatures. The connector is also water- and dustproof, making it ideal for outdoor and industrial use. Its rugged design, high-performance contact system, and secure locking mechanism suit industrial settings, outdoor applications, and the marine and automotive industries. With its easy installation and compact design, the Bulgin PXMBNI16FBF04ASCPG9 is a versatile connector used in various applications.

Typical Applications of the Bulgin PXMBNI16FBF04ASCPG9

  • An adaptable connector that can be used in a variety of applications is the Bulgin PXMBNI16FBF04ASCPG9. It is ideal for industrial situations, such as manufacturing factories and oil rigs, due to its tough design and high-performance contact system. It is also suitable for outdoor uses like telecommunications and transportation.
  • The marine industry is one of the primary uses for the Bulgin PXMBNI16FBF04ASCPG9. The connector is perfect for usage in marine applications, where it may be exposed to seawater and other harsh elements due to its waterproof and dustproof construction. It is frequently employed in the automobile sector as well, where it may be found in a number of applications, such as lighting systems, HVAC systems, and engine parts.

Key Features of the Bulgin PXMBNI16FBF04ASCPG9

The Bulgin PXMBNI16FBF04ASCPG9 has several features that make it a popular choice for engineers and manufacturers, such as:

  • One of the primary feature of this connector is its high-performance contact system, which ensures reliable connectivity even in the harshest of environments.
  • The connector also has a secure locking mechanism that prevents accidental disconnection, ensuring it remains firmly in place even when subjected to extreme vibration.
  • In addition to its high-performance contact system and secure locking mechanism, the PXMBNI16FBF04ASCPG9 is also designed to be easy to install.
  • It features a simple, push-pull coupling mechanism that allows quick and easy installation, even in tight spaces.
  • The connector also has a compact design, making it ideal for use in applications with a premium area.
