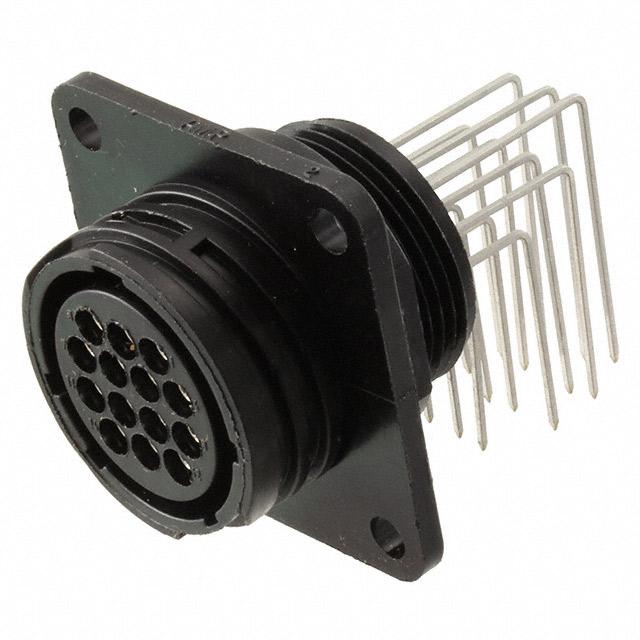

TE Connectivity AMP Connectors 796348-1

796348-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.69.4020
RoHS Status:
RoHS non-compliant
Voltage Rating:
250VAC/DC
Mounting Feature:
Flange
Operating Temperature:
-55°C ~ 105°C
Shell Size, MIL:
-
Number of Positions:
14
Backshell Material, Plating:
-
Shielding:
-
Cable Opening:
-
Shell Material:
Thermoplastic
REACH Status:
REACH Affected
Current Rating (Amps):
-
edacadModel:
796348-1 Models
Applications:
-
Contact Finish - Mating:
Tin-Lead
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4030689
Package:
Tray
Shell Size - Insert:
17-14
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Termination:
Solder
Insert Material:
-
Orientation:
Keyed
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount, Through Hole, Right Angle
Shell Finish:
-
Color:
-
Series:
CPC Series 1
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Contact Material:
Brass
Base Product Number:
796348
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 796348-1. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs non-compliant. Moreover, the product has a nominal 250vac/dc voltage rating. The product's mounting feature includes flange. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 14. It is made from highly reliable thermoplastic materials. In addition, it is reach affected. It has nice contact finishing of tin-lead. The basic product material is plastic. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . The insert's size is 17-14. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, threaded is the Fastening Type of the product. The product features solder termination style. The product has a keyed orientation. The product is available in panel mount, through hole, right angle configuration. The product cpc series 1, is a highly preferred choice for users. However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. The product is made from sturdy brass materials. Moreover, it corresponds to 796348, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
End of Life 29/SEP/2022(PCN Obsolescence/ EOL)
