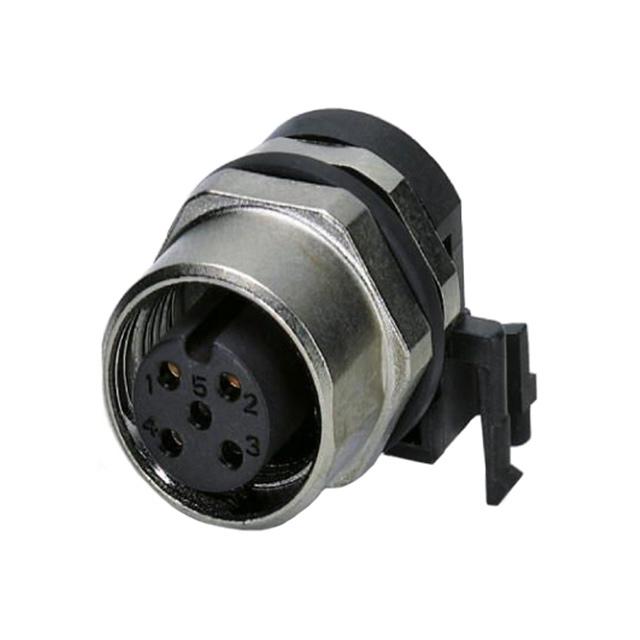

Phoenix Contact 1436563

1436563 Phoenix Contact
1436563
Phoenix Contact

Product Information

Plug/Socket:
Socket
Coding:
A
Contact Gender:
Female
Connector Size:
M12
Number of Contacts:
5
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Rear Side Nut
Operating Temperature:
-25°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
5
Contact Finish - Mating:
Gold
Backshell Material, Plating:
-
Shielding:
-
Cable Opening:
-
title:
1436563
Shell Material:
Zinc Die Cast
REACH Status:
REACH Affected
Current Rating (Amps):
4A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 V-0
Voltage Rating:
60V
Shell Size - Insert:
M12-5
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Twist
Termination:
Solder
standardLeadTime:
10 Weeks
Insert Material:
Polyamide (PA66), Nylon 6/6
Orientation:
A
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Guide, Board Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Shell Finish:
Nickel
Color:
Silver
Series:
DSIV
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Zinc
ECCN:
EAR99
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1436563. It comprises a socket. The product is coded with a. This female contact is widely suited for specific applications. The connector has m12 size. The product contains 5 contacts. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. The product's mounting feature includes bulkhead - rear side nut. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 5. It has nice contact finishing of gold. It is made from highly reliable zinc die cast materials. In addition, it is reach affected. Additionally, the product's output is 4a. The basic product material is metal. It carries ul94 v-0 of material flammability rating. Moreover, the product has a nominal 60v voltage rating. The insert's size is m12-5. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-twist is the Fastening Type of the product. The product features solder termination style. It has a long 10 weeks standard lead time. While it is also supplied with highly stable polyamide (pa66), nylon 6/6 insert material. The product has a a orientation. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include board guide, board lock. The product is available in panel mount, through hole, right angle configuration. The shell is an excellent finishing of nickel. It has a classic silver colour. The product dsiv, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is made from sturdy copper zinc materials. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
1436563(Datasheets)
pdf icon
o ring diameter change 10/23/2023(PCN Design/Specification)
pdf icon
design 2/29/2024(PCN Design/Specification)
