American Wire Gauge:
16 AWG
Current Rating:
16 A
Outer Diameter:
6.8mm
Sheath Material:
PVC
Cable Shape:
Twisted Pair
IP Rating:
IP67
Voltage Rating:
230 V
Connector 1 Orientation:
Straight
Minimum Bend Radius:
5xD (Fixed), 10xD (Flexible)
Connector 1 Gender:
Male
Length:
5m
Conductor Material:
Bare Cu litz wires
Series:
SAC-3P-MSS/ 5.0-PVC PE SCO
Connector 1 Housing Gender:
Male
Connector 1 Number of Contacts:
3
Coding:
S
Sheath Colour:
Black
Cross Sectional Area:
1.5 mm²
Connector 2:
Unterminated
Connector 1:
M12
Insulation Material:
PVC
1st Connector Orientation:
S
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
RoHS Compliant
Cable Material:
Polyvinyl Chloride (PVC)
Usage:
Industrial Environments
Shielding:
Unshielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
16.40' (5.00m)
1st Connector Gender:
Male Pins
standardLeadTime:
4 Weeks
1st Connector Type:
Receptacle
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
3 (2 Power + PE)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Color:
Black
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99

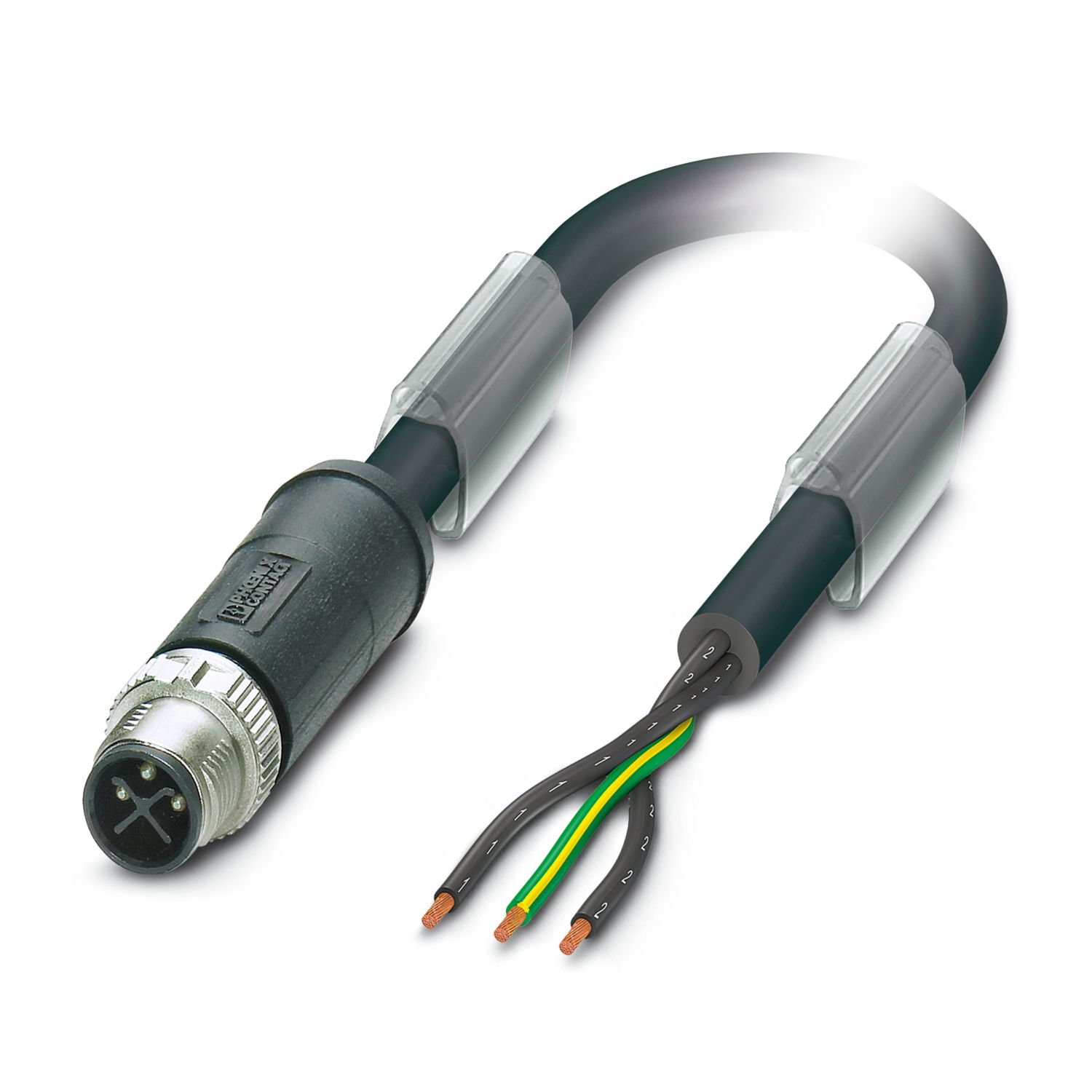

This is manufactured by Phoenix Contact. The manufacturer part number is 1411638. Features 16 awg - American Wire Gauge. The product has a current rating of 16 a. Its outer diameter is 6.8mm. The sheath is constructed from durable and adorable pvc material. Moreover, this cable has a twisted pair shape. It is IP rated with ip67. Moreover, the product has a nominal 230 v voltage rating. The connector 1 has a straight orientation. It bears 5xd (fixed), 10xd (flexible) of minimum bend radius. This connector 1 is a male. Its accurate length is 5m. The conductor is made from bare cu litz wires material. The product sac-3p-mss/ 5.0-pvc pe sco, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is male. There are 3 contacts on connector 1. The product is coded with s. The sheath has an adorable black colour. The product has 1.5 mm² cross section area. While the Connector 2 is unterminated. Connector 1 is m12. It has a robust pvc insulation material. This connector has a s orientation. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs compliant. The cable is constructed from highly durable polyvinyl chloride (pvc) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with unshielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. The second connector is the wire leads. The product is designed in a standard assembly configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 16.40' (5.00m). The first connectors are male pins. It has a long 4 weeks standard lead time. receptacle is the first connector. The first connector contains 3 (2 power + pe) positions. It is IP rated with ip67 - dust tight, waterproof. It has a classic black colour. It is a typical round cable. The first connector is configured with a free hanging (in-line) mounting type. The product is designated with the ear99 code number.
