American Wire Gauge:
20 AWG, 26 AWG
Current Rating:
500 (Data) mA, 6 (Power) A
Conductor Resistance:
5 m
Connector B:
Unterminated
Connector A:
M12
Oil Resistant:
Yes
Outer Sheath Material:
Polyurethane
Connector A Number of Contacts:
8
Number of Cores:
4
Connector A Housing Gender:
Plug
Outer Diameter:
7.6mm
Shielding:
Unshielded
Standards Met:
IEC 11801, IEC 60754, IEC 60811-2-1, UL 1581, VDE 0282, VDE 0472
Cable Shape:
Multicore
Voltage Rating:
30 V
Minimum Bend Radius:
10 x D
Maximum Operating Temperature:
+70 (Fiexible) °C, +90 (Fixed) °C
Connector A Gender:
Male
IP Rating:
IP65, IP67
Body Orientation:
Straight
Length:
5m
Number of Strands:
19
Characteristic Impedance:
100 Ω
Sheath Material:
Polyurethane PUR
Conductor Material:
CuZn
Series:
NBC-MSY/ 5.0-94H SCO
Size of Strands:
0.1 (Signal) mm, 0.2 (Voltage Supply) mm
Sheath Colour:
Black
Cross Sectional Area:
0.25 mm²
Minimum Operating Temperature:
-30 (Flexible) °C, -40 (Fixed) °C
Insulation Material:
PP
Manufacturer Standard Lead Time:
6 Weeks
Series:
*
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Standard Package:
1
Other Names:
NBC-MSY/ 5 0-94H SCO
Manufacturer:
Phoenix Contact

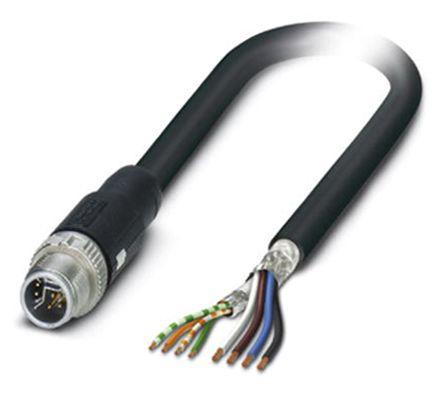

This is manufactured by Phoenix Contact. The manufacturer part number is 1407489. Features 20 awg, 26 awg - American Wire Gauge. The product has a current rating of 500 (data) ma, 6 (power) a. The conductor has <lteq/>5 m<ohm/> resistance. While the connector B is unterminated. The connector A is m12 connector. Additionally, it is oil resistant yes . Whereas the outer sheath is manufactured from polyurethane material. Connector A consists of 8 contacts. The product consists of 4 cores. On the other hand, the connector's housing (A) is a plug. Its outer diameter is 7.6mm. Furthermore, the product is shielded with unshielded. The product complies with all safety standards, such as iec 11801, iec 60754, iec 60811-2-1, ul 1581, vde 0282, vde 0472. Moreover, this cable has a multicore shape. Moreover, the product has a nominal 30 v voltage rating. It bears 10 x d of minimum bend radius. It has a maximum operating temperature of +70 (fiexible) °c, +90 (fixed) °c. Connector A is a male allowing user-desired applications. It is IP rated with ip65, ip67. It has straight body orientation. Its accurate length is 5m. Additionally, it contains 19 strands. The typical characteristic impedance includes 100 ω. The sheath is constructed from durable and adorable polyurethane pur material. The conductor is made from cuzn material. The product nbc-msy/ 5.0-94h sco, is a highly preferred choice for users. The strand size includes 0.1 (signal) mm, 0.2 (voltage supply) mm. The sheath has an adorable black colour. The product has 0.25 mm² cross section area. Whereas, the minimum operating temperature of the product is -30 (flexible) °c, -40 (fixed) °c. It has a robust pp insulation material. It has typical 6 weeks of manufacturer standard lead time. Its typical moisture sensitivity level is 1 (unlimited). It is available in the standard package of 1. Alternative Names include nbc-msy/ 5 0-94h sco. The phoenix contact's product offers user-desired applications.
