American Wire Gauge:
20 AWG, 26 AWG
Current Rating:
500 (Data) mA, 6 (Power) A
Connector B Number of Contacts:
8
Conductor Resistance:
5 m

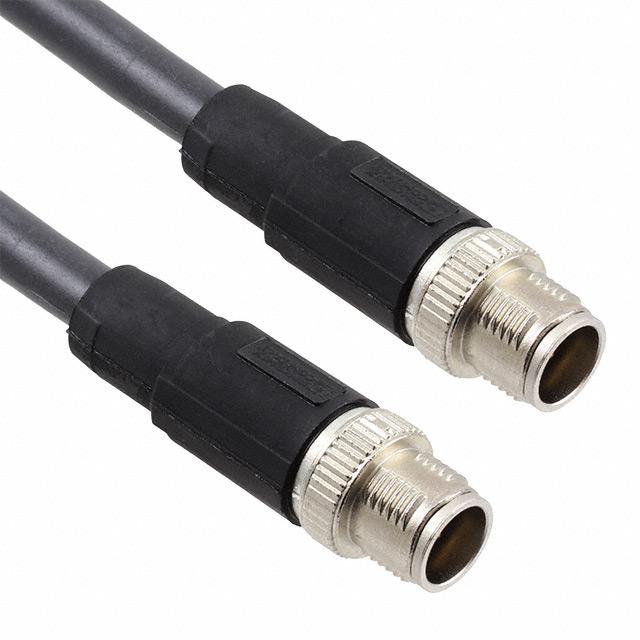

Connector B:
M12 Straight
Connector A:
M12
Oil Resistant:
Yes
Outer Sheath Material:
Polyurethane
Connector A Number of Contacts:
8
Number of Cores:
4
Connector A Housing Gender:
Plug
Outer Diameter:
7.6mm
Shielding:
Unshielded
Standards Met:
IEC 11801, IEC 60754, IEC 60811-2-1, UL 1581, VDE 0282, VDE 0472
Cable Shape:
Multicore
Voltage Rating:
30 V
Minimum Bend Radius:
10 x D
Maximum Operating Temperature:
+70 (Fiexible) °C, +90 (Fixed) °C
Connector A Gender:
Male
IP Rating:
IP65, IP67
Body Orientation:
Straight
Connector B Housing Gender:
Plug
Length:
3m
Connector B Gender:
Male
Number of Strands:
19
Characteristic Impedance:
100 Ω
Sheath Material:
Polyurethane PUR
Conductor Material:
CuZn
Series:
NBC-MSY/ 1.0-94H/MSY SCO
Size of Strands:
0.1 (Signal) mm, 0.2 (Voltage Supply) mm
Sheath Colour:
Black
Cross Sectional Area:
0.34 mm²
Minimum Operating Temperature:
-30 (Flexible) °C, -40 (Fixed) °C
Insulation Material:
PP
1st Connector Orientation:
Y
2nd Connector Mounting Type:
Free Hanging (In-Line)
HTSUS:
8544.42.2000
RoHS Status:
RoHS Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Cat5, Industrial Environments
Shielding:
Shielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
edacadModel:
1407491 Models
2nd Connector Type:
Receptacle
edacadModelUrl:
/en/models/4449615
Assembly Configuration:
Standard
2nd Connector Number of Positions:
8 (4 Data + 4 Power)
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
3.28' (1.00m)
1st Connector Gender:
Male Pins
1st Connector Type:
Receptacle
2nd Connector Shell Size - Insert:
M12
1st Connector Number of Positions:
8 (4 Data + 4 Power)
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Color:
Black
Series:
-
2nd Connector Orientation:
Y
Cable Type:
Round
2nd Connector Number of Positions Loaded:
All
2nd Connector Gender:
Male Pins
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99
